>>>>>型號:IS200TVIBH2BBB 振動終止板 用于控制和包含數據

【功能描述】

該IS200TVIBH2BBB由通用電氣制造和制造，是該公司Speedtronic Mark VI渦輪機控制線的一部分。Speedtronic系統用于控制從大型到小型的工業蒸汽和燃?xì)廨啓C系統的功能和操作。MKVI易于集成，提供控制和保護功能。

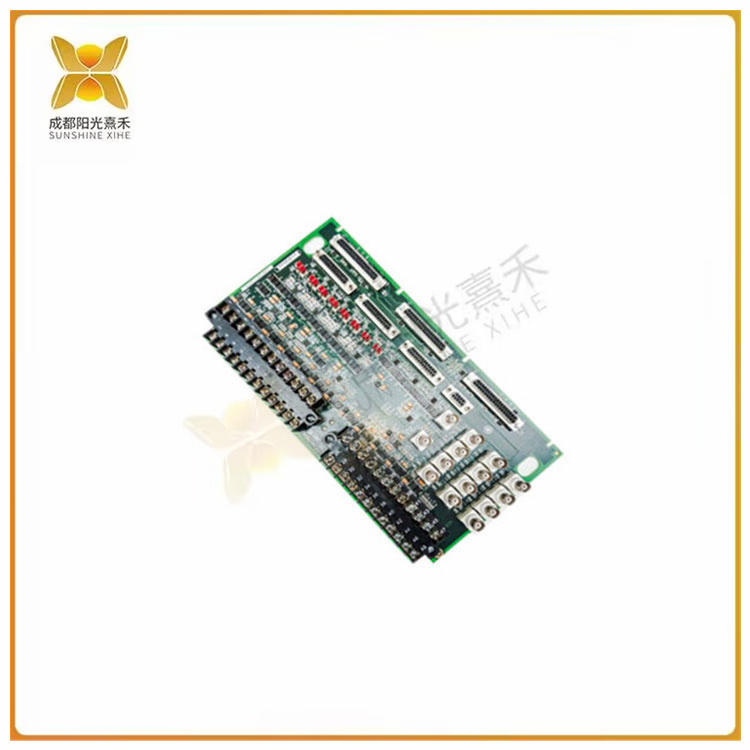

該IS200TVIBH2BBB用作振動終止板。它由安裝在其表面的多個集成電路構建而成，用于控制和包含數據。該板還包括電阻器和電容器等典型元件。此外，它還在電路板的一側有14個插頭連接器。

該IS200TVIBH2BBB有兩個大接線端子，占用一個長板邊緣。這些接線端子采用螺釘連接，分為兩條線。每個單獨的螺釘連接都有編號。這將使用戶能夠更好地維護和跟蹤所有電路板連接。

IS200TVIBH2BBB上的其他電路板組件包括母頭D型外殼連接器、電感器和跳線開關。跳線放置在靠近板中心的一條線上。它們成對放置?？梢愿幕蛑刂锰€，以控制電路板中電路的布線方式。有關詳細信息，請參閱原始GE文檔。

 >>>>>型號:IS200TVIBH2BBB 振動終止板 用于控制和包含數據

【英文介紹】

The IS200TVIBH2BBB is manufactured and manufactured by General Electric as part of the company's Speedtronic Mark VI turbine control line. Speedtronic systems are used to control the function and operation of industrial steam and gas turbine systems from large to small. MKVI is easy to integrate and provides control and protection.

The IS200TVIBH2BBB is used as a vibration termination board. It is built from multiple integrated circuits mounted on its surface to control and contain data. The board also includes typical components such as resistors and capacitors. In addition, it also has 14 plug connectors on the side of the board.

The IS200TVIBH2BBB has two large terminals occupying a long board edge. These terminals are connected by screws and are divided into two wires. Each individual screw connection is numbered. This will enable users to better maintain and track all board connections.

Other board components on the IS200TVIBH2BBB include female D-housing connectors, inductors, and jumper switches. The jumper is placed on a line near the center of the board. They are placed in pairs. The jumper can be changed or reset to control how the circuit in the board is routed. See the original GE documentation for more information.
