>>>>>型號:IS200WNPSH1ABA 通用電氣制造 可變電阻器

【功能描述】

IS200WNPSH1ABA是通用電氣制造的組件。該板是Mark VI系統的一部分。Mark VI是GE的Speedtronic系統之一，專為管理各種復雜程度和尺寸的蒸汽/燃氣輪機系統而設計。該系統可以構建為單工或TMR（三重模塊化冗余）系統。

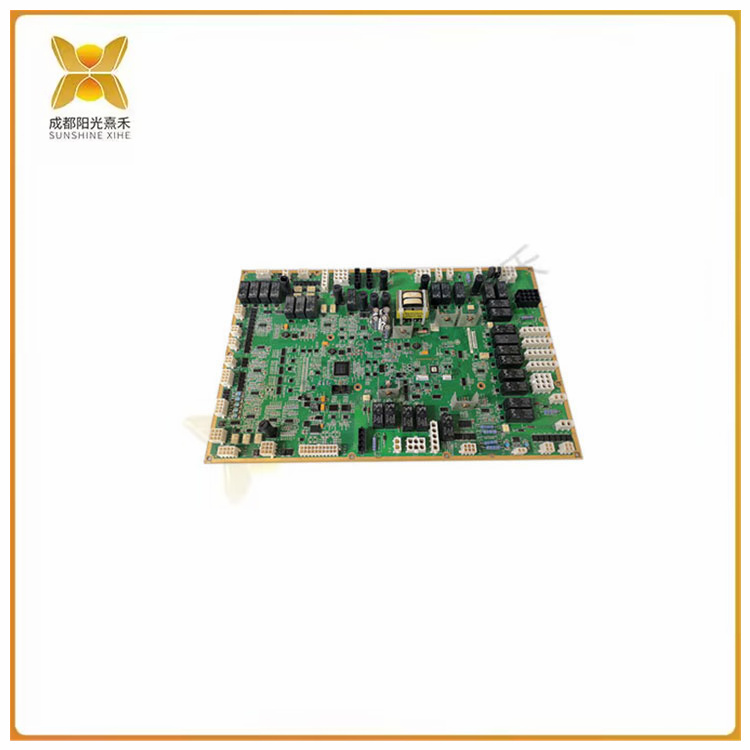

IS200WNPSH1ABA是雙面板，兩個表面都有組件。底面有一個單（公）多針連接器。這被標記為P1。后表面帶有代碼RA/00。前表面在頂面上還有兩個連接器。這些是母插孔連接器，每個連接器有三個位置。插頭放置在電路板的右側。插頭下方有一個金屬氧化物壓敏電阻，它是一個可變電阻器。

該IS200WNPSH1ABA有兩條平行于電路板頂部邊緣的快速熔斷保險絲。保險絲標記為FU1-FU16，以及TR1至TR16。左上角有一個DIL整流橋組件（DN1）。

IS200WNPSH1ABA在工廠鉆孔在三個角上。在板體上還有另外四個工廠鉆孔。該板的散熱器組件位于該板的左側。該板有十個集成電路，以及電容器和電阻器。該板有幾排二極管。還有三行組件平行于電路板底部放置。它們標記為B2、D2和Z2。

 >>>>>型號:IS200WNPSH1ABA 通用電氣制造 可變電阻器

【英文介紹】

The IS200WNPSH1ABA is a component manufactured by General Electric. The board is part of the Mark VI system. Mark VI is one of GE's Speedtronic systems designed to manage steam/gas turbine systems of all complexity and sizes. The system can be built as a simplex or TMR (Triple modular Redundancy) system.

The IS200WNPSH1ABA is a dual panel with components on both surfaces. There is a single (male) multi-pin connector on the underside. This is labeled P1. The rear surface carries code RA/00. The front surface also has two connectors on the top surface. These are female jack connectors and each connector has three positions. The plug is placed on the right side of the board. Under the plug is a metal oxide varistor, which is a variable resistor.

The IS200WNPSH1ABA has two fast blown fuses parallel to the top edge of the board. The fuses are marked FU1-FU16, and TR1 to TR16. There is a DIL rectifier bridge assembly (DN1) in the upper left corner.

IS200WNPSH1ABA drilled holes at three corners in the plant. There are another four factory holes in the body of the plate. The radiator assembly of the board is located on the left side of the board. The board has ten integrated circuits, as well as capacitors and resistors. The board has several rows of diodes. There are also three rows of components placed parallel to the bottom of the board. They are labeled B2, D2, and Z2.
