>>>>>型號:IS210AEBIH1BED 電路板組件 三重模塊化冗余

【功能描述】

IS210AEBIH1BED是通用電氣創建的電路板組件，是Mark VI系統的一部分。MKVI是GE發布的最后一批用于管理重型蒸汽/燃氣輪機的Speedtronic系統之一。這發生在1990年代，經過對Speedtronic系列幾十年的研究和開發。MKVI是一種TMR（三重模塊化冗余）架構系統，也可以設計為單工系統。它包括一個基于Windows的PC HMI（人機界面），加載了專為管理渦輪機而設計的軟件，例如Control System Toolbox和GE的CIMPLICITY圖形。

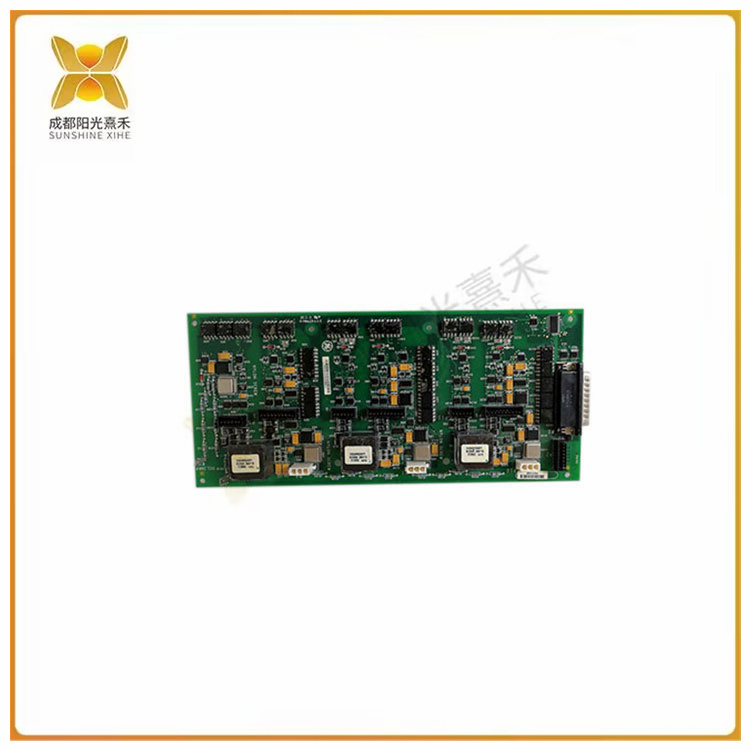

IS210AEBIH1BED是一個矩形的板，在每個角上都鉆了孔。沿著電路板的每個長邊都有兩個額外的工廠鉆孔。該板有一個從前邊緣延伸的小矩形臂。它有兩個穿過其表面的導電端子。主板的左側短邊由直角電纜連接器填充。這被標記為“P1”。位于其側面的“P2”連接器是多針垂直公連接器。該板裝有9個附加連接器，包括從5引腳到10引腳的公垂直引腳連接器以及3位母插頭。該板還有一個位于右上角的刺接連接器。

該IS210AEBIH1BED由三個變壓器組成。它有一百多個集成電路。這包括幾個振蕩芯片。安裝程序可以在用戶指南和手冊等出版物中找到。請遵循制造商關于安全程序的建議。

 >>>>>型號:IS210AEBIH1BED 電路板組件 三重模塊化冗余

【英文介紹】

The IS210AEBIH1BED is a circuit board assembly created by General Electric as part of the Mark VI system. The MKVI was one of the last Speedtronic systems released by GE for the management of heavy-duty steam/gas turbines. This happened in the 1990s, after decades of research and development on the Speedtronic series. MKVI is a TMR (Triple Modular Redundancy) architecture system that can also be designed as a simplex system. It includes a Windows-based PC HMI (Human Machine Interface) loaded with software designed for managing turbines, such as Control System Toolbox and GE's CIMPLICITY graphics.

The IS210AEBIH1BED is a rectangular plate with holes drilled in each corner. There are two additional factory holes along each long side of the board. The board has a small rectangular arm extending from the front edge. It has two conductive terminals that pass through its surface. The left short side of the motherboard is filled with right-angle cable connectors. This is labeled "P1". The "P2" connector located on its side is a multi-pin vertical male connector. The board is equipped with nine additional connectors, including male vertical pin connectors from 5 to 10 pins, and three female plugs. The board also has a splice connector located in the upper right corner.

The IS210AEBIH1BED consists of three transformers. It has more than a hundred integrated circuits. This includes several oscillating chips. Installers can be found in publications such as user guides and manuals. Follow the manufacturer's recommendations for safety procedures.
