>>>>>型號:DS200DCFBG1BLC 替換板設計的電源板 驅動器交叉兼容

【功能描述】

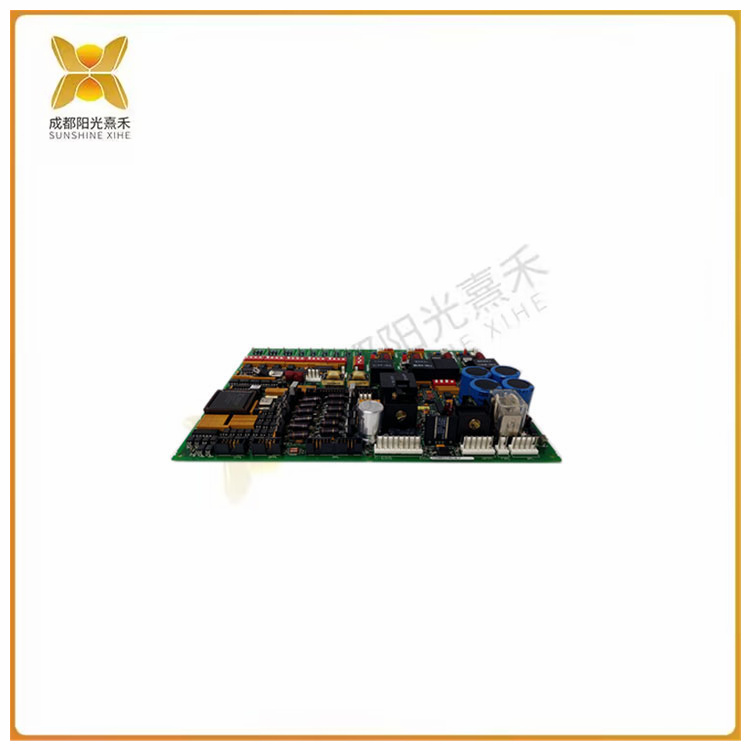

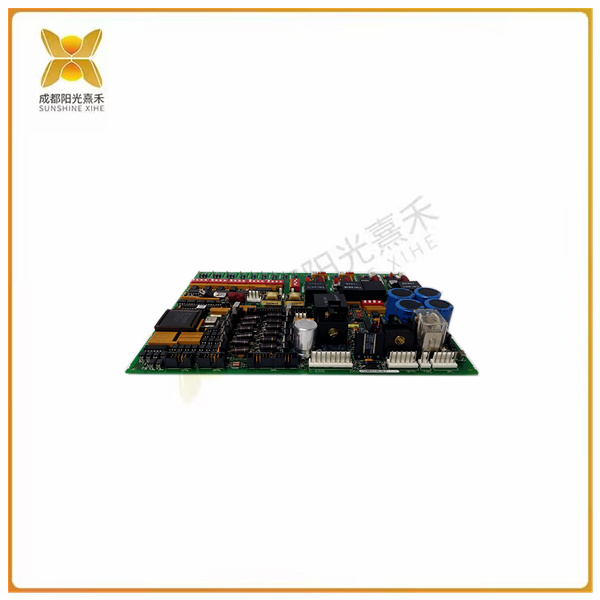

DS200DCFBG1BGBGBLC是通用電氣為Mark V系列可選板和替換板設計的電源板。該系列的成員與許多GE品牌的勵磁機和驅動器交叉兼容。DC2000、AC2000、CB2000、ME2000和FC2000的驅動器都可以接受此電源板。此卡為其安裝的驅動器提供系統控制級電源，并為機柜風扇提供電力。該板的源交流輸入額定電壓范圍為38至115 VAC。伴隨此VAC的頻率范圍為0至500 kHz，具體取決于輸入電壓的強度。

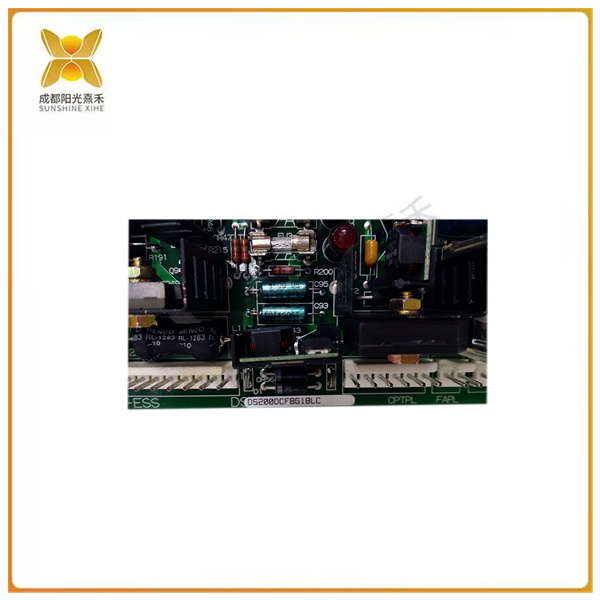

DS200DCFBG1BGBGBLC包含許多復雜的電路系統，旨在為大部分驅動器供電。該卡包括交流和直流監控電路、控制電平電源電路、電機勵磁電源電路和驅動電路。用戶可以在卡上配置12個跳線和7個DIP開關，以滿足任何外部要求。電路板狀態通過板載指示器傳達給用戶?？▋?nèi)置兩個LED指示燈和一個霓虹燈指示燈，為用戶提供重要的診斷和狀態信息。電路板的三個保險絲受到保護，確保中斷或浪涌不會中斷電流。確保使用集成到電路板中的五個測試點定期監控電壓水平。

必須遵循DS200DCFBG1BGBGBLC和驅動器提供的安裝參數。這些準則將確保電路板及其安裝的系統按預期運行。有關接線和安裝指南，請參閱系列手冊以及設備數據表。Mark V系列所有主板的技術支持最初由制造商通用電氣提供。

DS200DCFBG1BGBLC是電源板Mark V系列的一個特定型號。電源板是電子設備中用于提供電能的組件，而Mark V系列可能是指該電源板的系列名稱。DS200DCFBG1BGBLC這個型號可能是該系列中的一款特定產品，具有特定的規格和功能。

為了獲取更詳細的信息，您可能需要查閱制造商的官方文檔或聯系制造商的技術支持部門。此外，您也可以在專業論壇或社區中尋求其他用戶的幫助和建議，他們可能會提供有關該型號電源板的更多信息或使用經驗。

 >>>>>型號:DS200DCFBG1BLC 替換板設計的電源板 驅動器交叉兼容

【英文介紹】

DS200CTBAG1ADD GE Mark V terminal board

DS200CTBAG1ADD is a terminal board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of interconnected turbine systems. The boards are no longer manufactured and distributed by GE, but can be purchased as fully tested and refurbished models through AX Control.

The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. It drilled holes in each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification code, including the board ID number and the company logo.

DS200CTBAG1ADD is an analog terminal module. It is usually located in the R5> Inside the kernel. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). The DS200CTBAG1ADD has two double-stacked terminal blocks located at the edge of a longboard with multiple connectors on each terminal block. There are 5 vertical pin cable connectors, 2 vertical pin connector connectors, and a 9-pin male serial connector.

Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide varistors (MOV), a dozen jumper switches, and many capacitors and resistors. For more information, see GE's original technical support offering.
