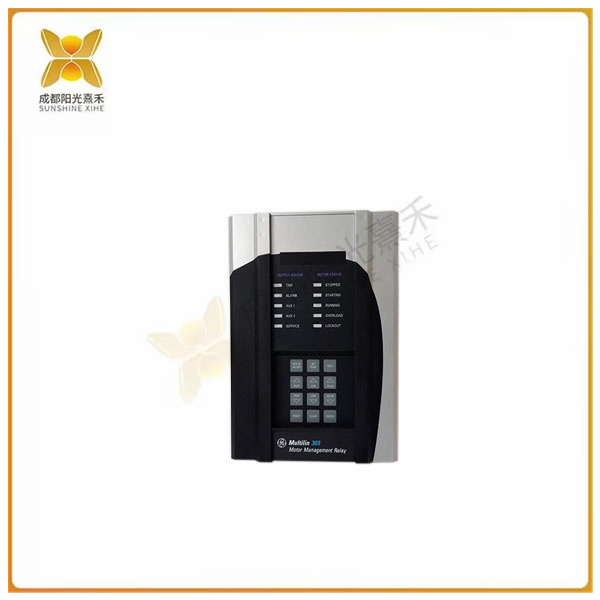

>>>>>型號:369-HI-R-M-0-0-0-E 電機管理繼電器 旨在保護和控制電機及其隨附組件

【功能描述】

369-HI-R-M-0-0-0-E 是通用電氣 Multilin 369 系列電機管理繼電器的一部分。這款 369 型號及其升級和配件即將停產，并處于最后購買狀態。一些升級，例如作為防腐蝕、高溫、灰塵和潮濕保護層的保形涂層，在產品線停產后仍然可以添加。

Multilin 的 369-HI-R-M-0-0-0-E 旨在保護和控制電機及其隨附組件。369 通過各種內置功能實現這一點，其中一些功能包括：

計量：369 可以監控電壓、瓦特、頻率和能量等數量，根據生成的值數據生成保護功能。

活動記錄：在跳閘后，369 能夠立即報告跳閘原因，以及跳閘時的溫度和數據值，使用戶能夠分析系統中出現的問題。

出行前警報：當由接地故障、機械堵塞、RTD 過熱等原因引起時，369 可以在跳閘前通知用戶。

電機健康報告：繼電器可以使用學習到的信息和系統跳閘的歷史記錄來確定何地可能需要維護。

振蕩圖：跳閘時觸發三個波形記錄，并捕獲 16 個數據周期。在此過程中，都會捕獲相電流和接地電流以及觸點輸入狀態。

369-HI-R-M-0-0-0-E 繼電器生成的大量數據和采用的保護功能有助于減少故障排除時間并延長系統壽命，使其成為中型電機的絕佳選擇。

 >>>>>型號:369-HI-R-M-0-0-0-E 電機管理繼電器 旨在保護和控制電機及其隨附組件

【英文介紹】

The 369-HI-R-M-0-0-0-E is part of the General Electric Multilin 369 series of motor management relays. The 369 model and its upgrades and accessories are about to be discontinued and are in final purchase condition. Some upgrades, such as conformal coatings that act as protection against corrosion, heat, dust and moisture, can still be added after the product line is discontinued.

Multilin's 369-HI-R-M-0-0-0-E is designed to protect and control the motor and its accompanying components. 369 does this through a variety of built-in features, some of which include:

Metering: The 369 can monitor quantities such as voltage, watt, frequency and energy, and generate protection functions based on the generated value data.

Activity logging: Immediately after tripping, the 369 can report the cause of tripping, as well as the temperature and data values at the time of tripping, enabling users to analyze problems occurring in the system.

Pre-trip alert: When caused by ground failure, mechanical blockage, RTD overheating, etc., the 369 can notify the user before tripping.

Motor health reports: Relays can use learned information and a history of system trips to determine where maintenance may be needed.

Oscillogram: Three waveform records are triggered when tripping and 16 data cycles are captured. During this process, both the phase and ground currents and the contact input state are captured.

The large amount of data generated by the 369-HI-R-M-0-0-0-E relay and the protection features employed help reduce troubleshooting time and extend system life, making it an excellent choice for medium-sized motors.

>>>>>型號:369-HI-R-M-0-0-0-E 電機管理繼電器 旨在保護和控制電機及其隨附組件
