>>>>>型號:369-HI-R-M-F-E-H-E 保護繼電器  同時在兩個控制輸入功率級別

【功能描述】

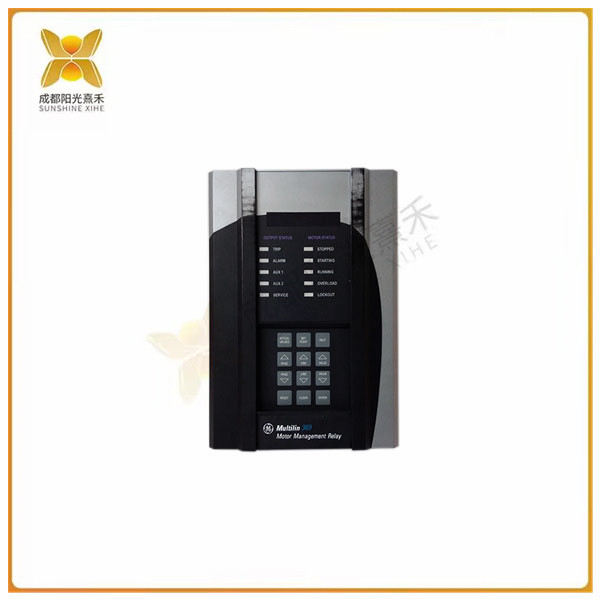

 369-HI-R-M-F-0-H-E是一款369電機保護繼電器。該系列繼電器設計用于保護電機（三相）和相關系統，同時在兩個控制輸入功率級別上提供許多基本功能和選項。

369-HI-R-M-F-0-H-E 提供了多種選擇。這包括 12 個 RTD 輸入。RTD 單元位于單元背面的左側。該裝置還具有可選的計量包。計量包增加了對 VT 輸入的訪問，這將允許電壓和功率元件。使用此選項可以計量 Hz、kVA、KW、伏特和兆瓦時。

369-LO-0-M-F-E-0 還安裝了額外的光纖端口。光纖端口的波特率為 1200 至 19200，并使用 Modbus RTU 協議。這用于通道 3。當用于通道 3 時，通道 3 RS485 連接將被禁用。但是，該裝置仍將有其他可用的 RS485 端口。此外，該裝置還有一個 RS232 端口，可用于連接 PC。這通常用于與 GE 的 EnerVista 軟件進行通信。

有關此版本 369 繼電器的其他信息，或有關 369 安裝、處理或維護的一般信息，可通過 GE 手冊和用戶指南找到。

 >>>>>型號:369-HI-R-M-F-E-H-E 保護繼電器  同時在兩個控制輸入功率級別

【英文介紹】

The 369-HI-R-M-F-0-H-E is a 369 motor protection relay. This series of relays is designed to protect motors (three-phase) and associated systems while providing many basic features and options at both control input power levels.

The 369-HI-R-M-F-0-H-E offers a variety of options. This includes 12 RTD inputs. The RTD unit is located on the left side of the back of the unit. The unit also has an optional metering package. The metering package increases access to the VT input, which will allow both voltage and power components. With this option, you can measure Hz, kVA, KW, volts, and megawatt-hours.

The 369-LO-0-M-F-E-0 also has an additional fiber optic port installed. The fiber optic port has a baud rate of 1200 to 19200 and uses the Modbus RTU protocol. This is used for channel 3. When used in channel 3, the RS485 connection in channel 3 is disabled. However, the device will still have other RS485 ports available. In addition, the unit has an RS232 port that can be used to connect to a PC. This is commonly used to communicate with GE's EnerVista software.

Additional information about this version of the 369 relay, or general information about the installation, handling, or maintenance of the 369, can be found in GE manuals and user guides.
