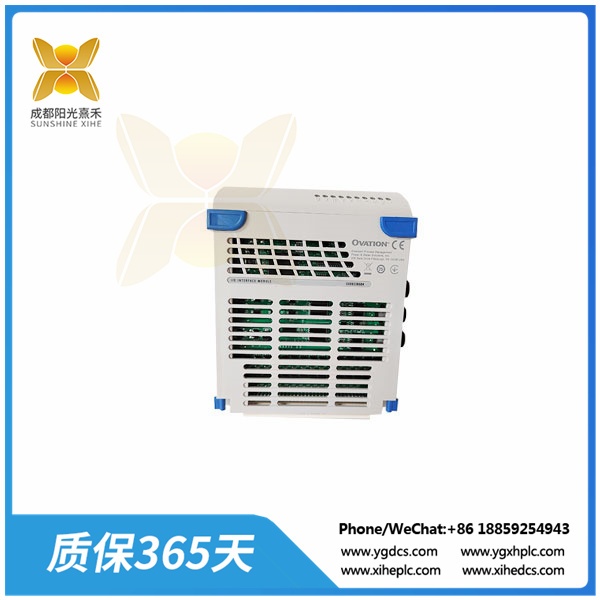

5X00226G04  |  控制模塊  |  5X00453G01 |  5X00453G01

　　型號：5X00226G04

　　主要特征

　　帶FPU和MMU的60 MHzMC68060

　　8KB L1緩存

　　32 MB ECC DRAM

　　128KB RAM電池緩沖

　　2 MB閃存

　　鋰電池緩沖8 KB WVRAM和時鐘

　　帶32位DMA的以太網

　　4個EIA-232-D(RS232)串行端口

　　●6個32位定時器，看[]狗定時器

　　2個EROI插座

　　帶DMA的SCSI總線接口

　　工作溫度范圍0..70攝氏度

　　5X00226G04 控制模塊是一個在多個領域中都有廣泛應用的重要組件。在計算機系統中，控制模塊是一個負責控制和管理其他模塊的核心組件，它由硬件和軟件兩部分組成，硬件部分負責與外部設備進行交互，而軟件部分負責編寫控制邏輯和算法1?？刂颇K能夠根據輸入信號的變化來控制其他模塊的行為，實現系統的自動化控制和管理，被應用于工業自動化、機器人控制、交通系統等領域2。

　　在控制系統中，5X00226G04控制模塊通常與傳感器模塊、比較器模塊、執行器模塊和反饋模塊等一起工作，共同實現精確的控制功能2。而在汽車領域，控制模塊的作用是實現離散的控制功能，對眾多用電器進行控制，如燈具、雨刮、門鎖等3。

　　此外，控制模塊還廣泛應用于家電、機器人、工業設備等領域，監測和控制設備的運行狀態，提高生產效率，降低成本。

　　Model: 5X00226G04

　　Main feature

　　60 MHzMC68060 with FPU and MMU

　　8KB L1 cache

　　32 MB ECC DRAM

　　128KB RAM battery buffer

　　2 MB Flash

　　Lithium battery buffer 8 KB WVRAM and clock

　　Ethernet with 32-bit DMA

　　Four EIA-232-D(RS232) serial ports

　　●6 32-bit timers, see [] dog timer

　　2 EROI sockets

　　SCSI bus interface with DMA

　　Operating temperature range 0... 70 degrees Celsius

　　The 5X00226G04 control module is an important component that is widely used in many fields. In a computer system, the control module is a core component responsible for controlling and managing other modules, which consists of two parts: hardware and software. The hardware part is responsible for interacting with external devices, while the software part is responsible for writing control logic and algorithm1. The control module can control the behavior of other modules according to the change of the input signal, realize the automatic control and management of the system, and is applied to industrial automation, robot control, traffic system and other fields.

　　In the control system, the 5X00226G04 control module usually works with the sensor module, comparator module, actuator module and feedback module, etc., to achieve accurate control function 2. In the automotive field, the role of the control module is to achieve discrete control functions and control many electrical appliances, such as lamps, wipers, door locks, etc. 3.

　　In addition, the control module is also widely used in household appliances, robots, industrial equipment and other fields to monitor and control the operating status of equipment, improve production efficiency and reduce costs.
