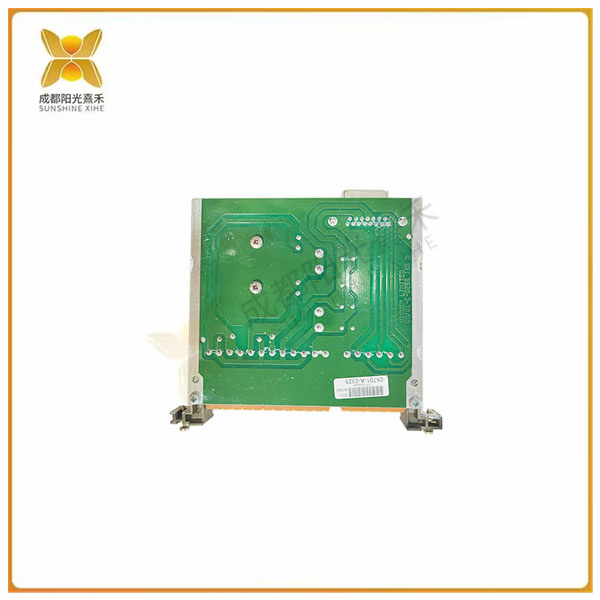

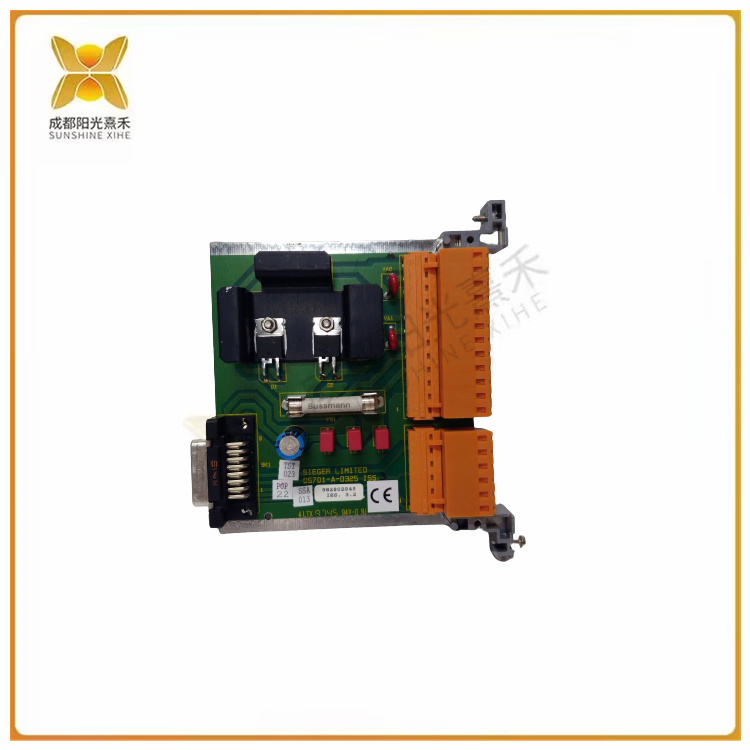

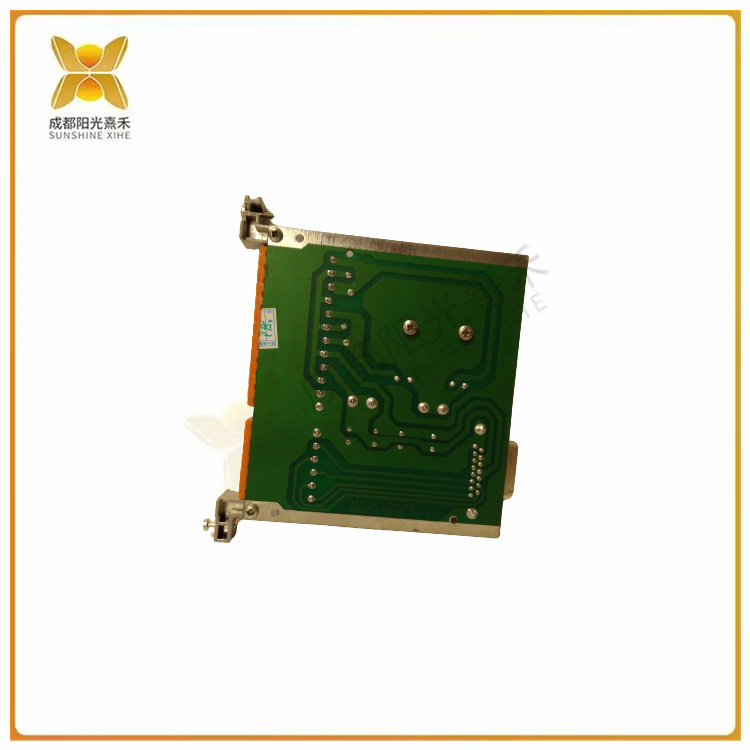

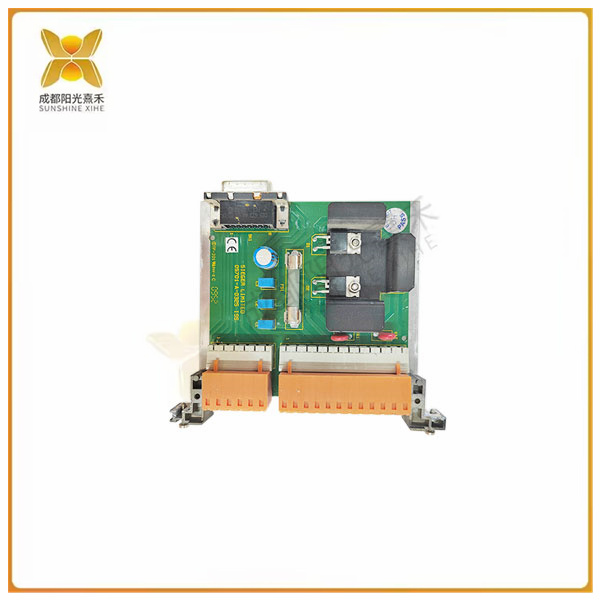

>>>>>型號:05701-A-0325 DC輸入卡 24V直流電源提供
【功能描述】
制造商:霍尼韋爾
產品編號:05701-A-0325
產品類型:DC輸入卡
機架的直流電可以通過dc輸入卡進入子機架。該電源可由用戶從外部標稱24V直流電源提供。直流電源通過工程卡和子機架背板連接到機架中的所有卡，并由dc輸入卡上的保險絲保護。有一個由兩部分組成的端子板TB1，有助于在不斷開每根連接導線的情況下移除卡。
為了防止在使用八個以上5704催化卡的安裝中沿機架背板出現過大電流，建議控制卡通過其相關的四繼電器接口卡和僅用于為工程卡供電的DC輸入卡供電。
如果需要，備用電池電源也可以連接到輔助直流輸入連接。
PSU和輔助連接通過二極管相互隔離。
DC輸入卡還提供RFI過濾和反極性保護。
工業自動化:HONEYWELL 05701-A-0325通信模塊通常用于工業自動化系統,以促進數據交換和控制的PLCS,SCAD系統和其他設備。它們能夠在自動化網絡中實現無縫通信和數據共享。
建筑物自動化:在商業和工業建筑中,HONEYWELL 05701-A-0325通信模塊可用于不同的建筑物自動化系統之間的通信,如空調控制系統、照明控制系統和安全系統。
過程控制:HONEYWELL 05701-A-0325通信模塊可用于過程控制應用,以便在各種儀器、控制器和監測系統之間連接和交換數據。
數據采集和遠程監測:HONEYWELL 05701-A-0325通信模塊通常用于數據采集和遠程監測應用,需要將來自遠程傳感器或設備的數據傳輸?shù)街醒肟刂葡到y(tǒng)。
能源管理:在能源管理系統中,HONEYWELL 05701-A-0325通信模塊可用于實現能源表、電力管理設備和能源監測系統之間的通信。
工業網絡:HONEYWELL 05701-A-0325通信模塊可用于工業網絡應用,以建立不同網絡節點和設備之間可靠和高效的通信。
>>>>>型號:05701-A-0325 DC輸入卡 24V直流電源提供
【英文介紹】
Manufacturer: Honeywell
Product Number :05701-A-0325
Product type :DC input card
The direct current of the rack can enter the sub-rack through the dc input card. The power supply can be supplied by the user from an external nominal 24V DC power supply. The dc power supply is connected to all cards in the rack via the engineering card and subrack backplane, and is protected by a fuse on the DC input card. There is a two-part terminal board, TB1, which helps to remove the card while constantly opening each connecting wire.
To prevent excessive current along the rack backplane in installations using more than eight 5704 catalytic cards, it is recommended that the control card be powered through its associated four-relay interface card and the DC input card used to power the engineering card only.
Backup battery power can also be connected to a secondary DC input connection if required.
The PSU and auxiliary connections are isolated from each other by diodes.
The DC input card also provides RFI filtering and reverse polarity protection.
Industrial Automation :HONEYWELL 05701-A-0325 communication modules are commonly used in industrial automation systems to facilitate data exchange and control of PLCS,SCAD systems and other equipment. They enable seamless communication and data sharing in automated networks.
Building automation: In commercial and industrial buildings, the HONEYWELL 05701-A-0325 communication module can be used to communicate between different building automation systems, such as air conditioning control systems, lighting control systems and security systems.
Process control: The HONEYWELL 05701-A-0325 communication module can be used in process control applications to connect and exchange data between various instruments, controllers and monitoring systems.
Data acquisition and remote monitoring :HONEYWELL 05701-A-0325 communication modules are commonly used in data acquisition and remote monitoring applications that require the transmission of data from remote sensors or devices to a central control system.
Energy Management: In energy management systems, the HONEYWELL 05701-A-0325 communication module can be used to enable communication between energy meters, power management equipment and energy monitoring systems.
Industrial Networking: The HONEYWELL 05701-A-0325 communication module can be used in industrial networking applications to establish reliable and efficient communication between different network nodes and devices.
