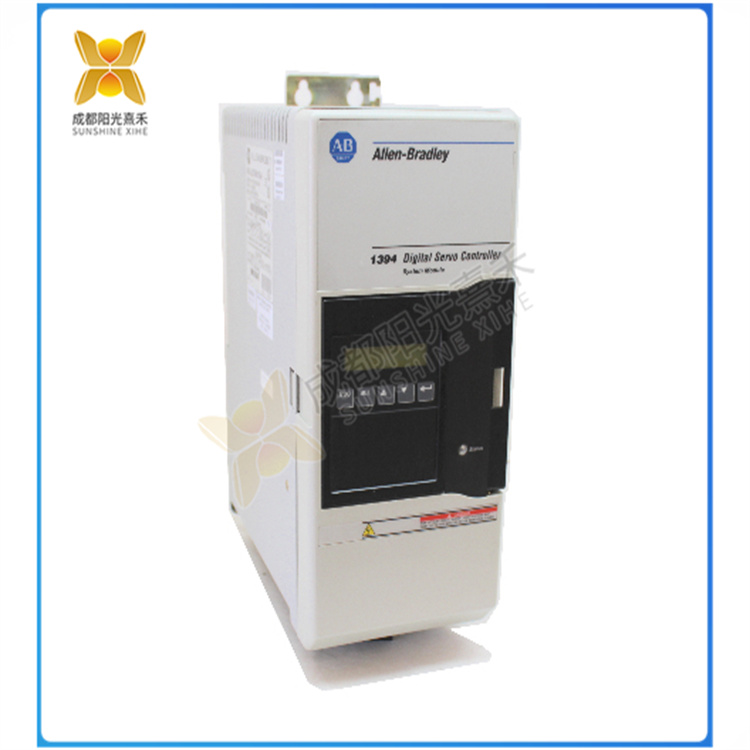

>>>>>型號:1394C-SJT22-A 伺服控制器
【功能描述】
1394C-SJT22-A 是一款伺服控制器。這款控制器具有模擬模塊功能和 ±10 伏直流模擬接口，屬于 C 系列系統模塊。
它支持最多四個軸并可用作速度或扭矩控制器。此外，它配備了Bulletin 1201人機界面模塊，允許自動調整和快速啟動。
這款伺服控制器還有一個SCANport接口，直流電壓下連續輸出電流33.8安培，連續輸出功率22千瓦，和一個三相電源。
在電源輸入方面，1394C-SJT22-A支持24伏交流電源，并提供了斷開功能、保險絲盒以及用于電機制動器和熱觸點的24伏直流電源。
這款伺服控制器可在324至528伏交流電、50至60赫茲的電源下工作，效率高達98%。
在技術規格方面，1394C-SJT22-A的電容為660μF，電感為500。此外，它配備了數模轉換器（DAC）板，執行數模轉換
12位正真偏移二進制輸入編碼字的模擬轉換，輸出范圍為-10至+10伏。
>>>>>型號:1394C-SJT22-A 伺服控制器
【英文介紹】
The 1394C-SJT22-A is a servo controller. This controller features an analog module function and
a ±10 volt DC analog interface and belongs to the C Series system module.
It supports up to four axes and can be used as a speed or torque controller. In addition, it is
equipped with a Bulletin 1201 human-machine interface module that allows for automatic adjustment
and quick startup. This servo controller also has a SCANport interface, continuous output current of
33.8 amps at DC voltage, continuous output power of 22 kW, and a three-phase power supply.
In terms of power input, the 1394C-SJT22-A supports 24 volt AC power and offers a disconnect function,
a fuse box, and 24 volt DC power for motor brakes and hot contacts. The servo controller operates at
324 to 528 volts AC and 50 to 60 Hertz with an efficiency of up to 98%.
In terms of technical specifications, the 1394C-SJT22-A has a capacitance of 660μF and an inductance o
f 500. In addition, it is equipped with a digital-to-analog converter (DAC) board that performs digital-to-analog
conversion of 12-bit positive true-offset binary input coded words with an output range of -10 to +10 volts.
On the market, this servo controller is sold at a price of 2300.00 yuan, weighs 3.1 kg, and is usually used in
electric valve controller applications.
Overall, the 1394C-SJT22-A is a high-performance, highly reliable servo controller suitable for a variety of
industrial automation applications, especially those requiring precise control.
