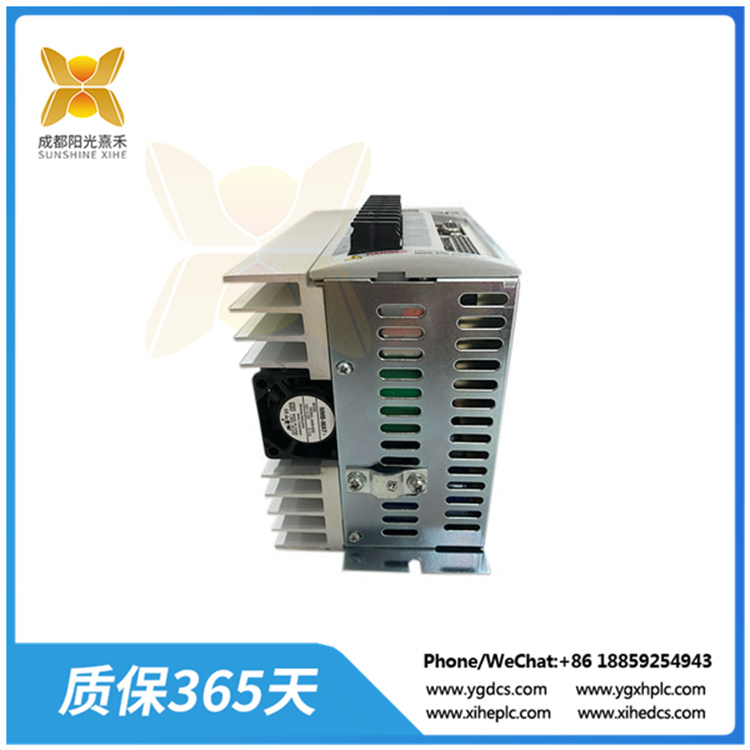

>>>型號:2098-DSD-020X 運動控制元件 用于工業自動化和控制系統 內置索引功能
【功能描述】
2098-DSD-020X是一款運動控制元件，具體屬于Ultra 3000產品系列中的數字伺服驅動器（DSD）。這款驅動器在工業自動化和控制系統中扮演著至關重要的角色，尤其在需要高精度和穩定性能的應用場景中。
2098-DSD-020X它主要用于連接伺服電機，并接受來自Allen-Bradley正弦/余弦編碼器的反饋位置數據，以及來自特定型號的增量外部編碼器的數據。這使得它能夠精確地控制伺服電機的運動，滿足各種復雜的運動控制需求。
在電源和性能方面，2098-DSD-020X可在120VAC / 240 VAC、單相、50-60 Hz的輸入電源電壓和18安培的輸入電流下工作。它提供120 / 240 VAC的輸出電壓，并具有3相、0-400 Hz的可編程頻率范圍。此外，該驅動器還具
有10安培的最大連續輸出電流和30安培的最大峰值輸出電流，能夠在不同負載條件下提供穩定的動力輸出。
在功率輸出方面，2098-DSD-020X在115 VAC輸入時產生115 kW的連續輸出功率，在230 VAC輸入時產生2.0 kW的連續輸出功率。這樣的功率輸出能力使其能夠滿足各種高功率需求的應用場景。
2098-DSD-020X還具有多種高級功能。它集成了DeviceNet通信接口，允許驅動器直接與支持DeviceNet的控制器進行高速通信，覆蓋更長的距離。這大大提高了數據傳輸?shù)男屎涂煽啃裕沟谜麄€(gè)系統能夠更快速地響應各種變化。
2098-DSD-020X還具有內置索引功能。通過分度功能，預配置的伺服電機運動可以存儲在伺服驅動器的內存中。這使得用戶能夠?yàn)樘囟ㄘ?fù)載或產品類型選擇預定義的分度曲線，從而簡化了運動控制的設置和調整過程。
在環境適應性方面，2098-DSD-020X的工作沖擊為15g (3個脈沖，11毫秒)，非操作沖擊為30 g (3個脈沖，11 ms)，設計用于在2.5 g振動下保持最佳功能。此外，它可在高達1000米(3280英尺)的海拔高度下運行，無需降額。其工作
溫度為0 -55攝氏度(32-131華氏度)，儲存溫度為-40-70°C(-40-158°F)，相對濕度為5-95%，無冷凝。這些特性使得該驅動器能夠適應各種惡劣的工業環境。
>>>>型號:2098-DSD-020X 運動控制元件 用于工業自動化和控制系統 內置索引功能
【英文介紹】
The 2098-DSD-020X is a motion control element belonging specifically to the Digital Servo Drive (DSD) in the Ultra 3000 product family. These drives play a vital role in industrial automation and control systems, especially
in applications that require high precision and stable performance.
2098-DSD-020X It is primarily used to connect servo motors and accepts feedback position data from Allen-Bradley sine/cosine encoders, as well as data from incremental external encoders of specific models. This enables it
to precisely control the motion of the servo motor to meet a variety of complex motion control needs.
In terms of power supply and performance, the 2098-DSD-020X can operate at 120VAC / 240 VAC, single-phase, 50-60 Hz input power supply voltage and 18 amps input current. It offers an output voltage of 120/240 VAC
and has a 3-phase, 0-400 Hz programmable frequency range. In addition, the driver has a maximum continuous output current of 10 amps and a maximum peak output current of 30 amps, providing stable power output
under different load conditions.
In terms of power output, the 2098-DSD-020X produces 115 kW continuous output at 115 VAC input and 2.0 kW continuous output at 230 VAC input. This power output capability enables it to meet a variety of applications
with high power requirements.
The 2098-DSD-020X also has several advanced features. It integrates the DeviceNet communication interface, allowing drivers to communicate directly with Devicenet-enabled controllers at high speeds, covering longer distances.
This greatly improves the efficiency and reliability of data transmission, allowing the entire system to respond more quickly to various changes.
The 2098-DSD-020X also has a built-in indexing function. With the indexing function, pre-configured servo motor movements can be stored in the memory of the servo drive. This enables users to select a predefined indexing curve
for a specific load or product type, simplifying the process of setting up and adjusting motion controls.
In terms of environmental adaptability, the 2098-DSD-020X has a working shock of 15g (3 pulses, 11 ms) and a non-operating shock of 30 g (3 pulses, 11 ms) and is designed to maintain optimal function at 2.5 g vibration. In addition,
it can operate at altitudes up to 1,000 meters (3,280 feet) without derating. Its operating temperature is 0-55 degrees Celsius (32-131 degrees Fahrenheit), storage temperature is -40-70°C(-40-158°F), relative humidity is 5-95%, and
there is no condensation. These characteristics enable the drive to adapt to a variety of harsh industrial environments.
