>>>型號:6186-M15ALTR 工業性能監視器 用于工業自動化和控制系統 觸摸屏
【功能描述】

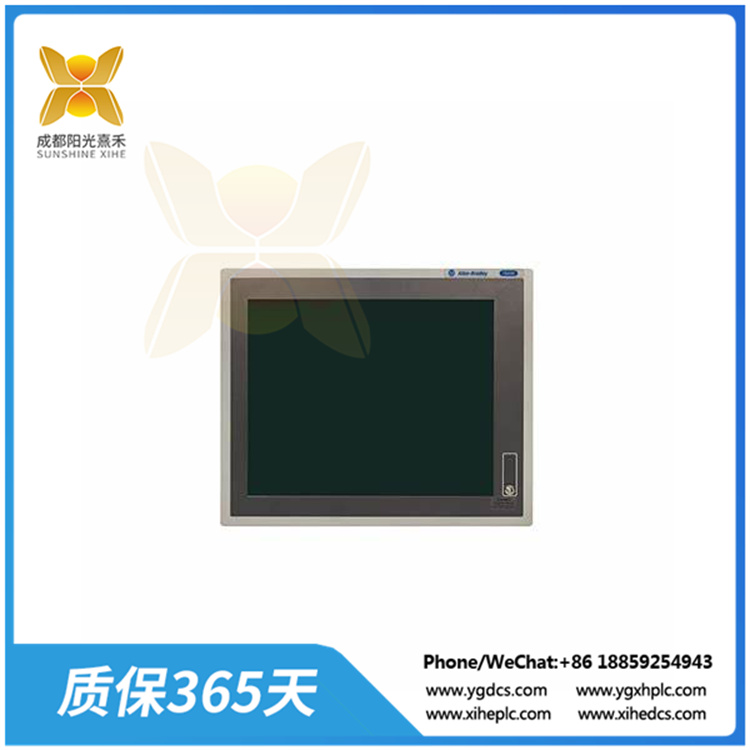

6186-M15ALTR是一款工業性能監視器，它提供了LCD平板技術，可與重型工業非顯示計算機結合使用，創建可視化、維護、控制或信息計算解決方案。該監視器配備了觸摸屏，是一種可接收觸頭等輸入訊號的感應式液晶顯示裝置，
能夠用以取代機械式的按鈕面板，并制造出生動的影音效果。
6186-M15ALTR監視器可以與100~240V AC或9V~36V DC的電源連接，但不應同時連接到AC和DC電壓。它支持面板、機架或工作臺/桌面等多種安裝方式，提供了很大的靈活性。
在硬件配置上，6186-M15ALTR監視器具有15英寸XGA TFT LCD顯示屏，配置了8GB DDR4 SDRAM內存和256GB Solid State Drive存儲空間。此外，它還運行Windows 10 IoT Enterprise操作系統，提供了強大的數據處理和運算能力。
在尺寸和重量方面，6186-M15ALTR監視器的尺寸為396.6mm×284.7mm×70.4mm，重量為5.3kg。它的工作溫度范圍為-20℃~60℃，IP等級為IP66，抗沖擊性為50g，11ms，抗振為1g，5hz~500hz。
6186-M15ALTR監視器還具備多種應用特性。它配備了1670萬色圖形和500:1的對比度，使得圖像顯示更為清晰和生動。該顯示器還采用由4個冷陰極管燈泡組成的背光源，在半亮度使用時平均壽命為50,000小時，這確保了長時間的穩定使用。
同時，它還具備電阻式防眩光護罩和鋁制邊框，提供了更好的視覺體驗。
6186-M15ALTR監視器的平均響應時間為16ms，使得其在實時顯示和交互操作中表現出色。它的自動量程輸入電壓為90~264V AC，線路頻率為47~63 Hz，功耗為24W，這使得它在各種工業環境中都能穩定工作。
總的來說，6186-M15ALTR是一款功能強大、性能穩定的工業性能監視器，適用于各種需要高清晰度顯示和觸摸交互的工業自動化和控制系統。它的高可靠性、易用性和強大的功能，使得它在工業自動化領域具有廣泛的應用前景。
>>>>型號:6186-M15ALTR 工業性能監視器 用于工業自動化和控制系統 觸摸屏
【英文介紹】
The 6186-M15ALTR is an industrial performance monitor that offers LCD flat panel technology that can be used in combination with heavy-duty industrial non-display computers to create visualization, maintenance, control, or information
computing solutions. The monitor is equipped with a touch screen, an inductive liquid crystal display device that can receive touch input signals, and can be used to replace mechanical button panels and create vivid audio and video effects.
The 6186-M15ALTR monitor can be connected to a power supply of 100 to 240V AC or 9 to 36V DC, but should not be connected to both AC and DC voltages. It supports a variety of mounting options such as panels, racks or workbenches/
desktops, providing great flexibility.
In terms of hardware configuration, the 6186-M15ALTR monitor features a 15-inch XGA TFT LCD display with 8GB DDR4 SDRAM memory and 256GB Solid State Drive storage. In addition, it runs the Windows 10 IoT Enterprise operating system,
which provides powerful data processing and computing capabilities.
In terms of size and weight, the 6186-M15ALTR monitor measures 396.6mm×284.7mm×70.4mm and weighs 5.3kg. Its operating temperature range is -20℃~60℃, IP class is IP66, impact resistance is 50g, 11ms, vibration resistance is 1g, 5hz~500hz.
The 6186-M15ALTR monitor also offers a variety of application features. It is equipped with 16.7 million color graphics and a 500:1 contrast ratio, which makes the image display clearer and more vivid. The display also features a backlight consisting
of four cold cathode tube bulbs with an average life of 50,000 hours at half-brightness use, which ensures stable use over long periods of time. At the same time, it also has a resistive anti-glare shield and aluminum bezel, providing a better visual
experience.
The 6186-M15ALTR monitor has an average response time of 16ms, making it excellent for real-time display and interactive operation. Its automatic range input voltage is 90 to 264V AC, line frequency is 47 to 63 Hz, and power consumption is 24W,
which makes it stable in a variety of industrial environments.
Overall, the 6186-M15ALTR is a powerful and stable industrial performance monitor for a wide range of industrial automation and control systems that require high-definition display and touch interaction. Its high reliability, ease of use and powerful
functions make it have a wide application prospect in the field of industrial automation.
