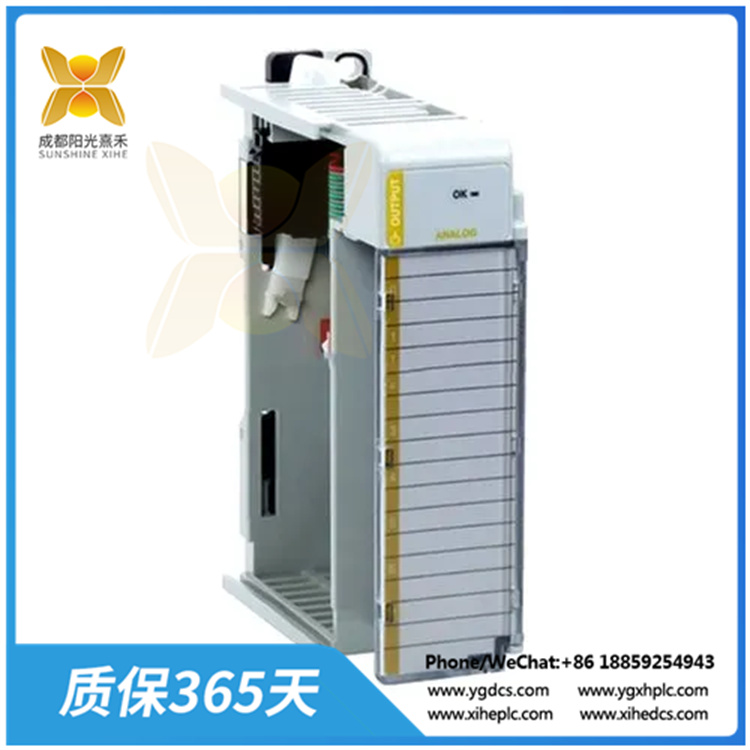

>>>型號:1769-OF4-CC 工業自動化輸出模塊 四個單端通道

【功能描述】

1769-OF4-CC是一款工業自動化輸出模塊，它屬于 1769系列。這款模塊專為工業自動化系統設計，具有一系列顯著的特點和性能參數，以滿足現代制造業的需求。

1769-OF4-CC模塊是一個模擬輸出模塊，具有四個單端通道，這些通道可以配置為四個電壓和電流通道。其適用的輸出電壓和電流范圍廣泛，包括±10V、0-10V、0-5V、1-5V以及0-20mA或4-20mA，

使得該模塊能夠靈活地適應各種工業自動化應用。

在精度方面，1769-OF4-CC模塊表現出色。其精度裕量在25攝氏度時滿量程為0.5%，在0至0.5千赫茲時的輸出紋波為±0.50%。此外，該模塊還具有±0.60%的模塊誤差范圍（在0至8攝氏度時），并且重

復性為±0.05%，確保了輸出信號的準確性和穩定性。

在電氣性能方面，1769-OF4-CC模塊具有高達40mA的電流電路保護和過壓保護，能夠有效防止電路過載和電壓過高對設備造成的損害。其額定工作電壓為30伏直流電，保證了模塊在正常工作條件下的穩定運行。

該模塊還具有緊湊的尺寸和輕便的重量，便于安裝和攜帶。其尺寸為118 x 35 x 87毫米（4.65 x 1.38 x 3.43英寸），重量為280克（0.61磅），使得它能夠在空間有限的工業自動化環境中輕松部署。

在兼容性方面，1769-OF4-CC模塊與MicroLogix 1500和CompactLogix控制器兼容，使得它能夠方便地集成到現有的自動化系統中，實現無縫連接和高效通信。

>>>>型號:1769-OF4-CC 工業自動化輸出模塊 四個單端通道

【英文介紹】

The 1769-OF4-CC is an industrial automation output module belonging to the 1769 series. Designed for industrial automation systems, this module has a range of distinctive features and performance

parameters to meet the needs of modern manufacturing.

The 1769-OF4-CC module is an analog output module with four single-ended channels that can be configured as four voltage and current channels. The wide range of applicable output voltages and currents,

 including ±10V, 0-10V, 0-5V, 1-5V, and 0-20mA or 4-20mA, allows the module to be flexibly adapted to various industrial automation applications.

In terms of accuracy, the 1769-OF4-CC module performs well. Its accuracy margin is 0.5% at full scale at 25 degrees Celsius and the output ripple is ±0.50% at 0 to 0.5 kilohertz. In addition, the module has a

module error range of ±0.60% (at 0 to 8 degrees Celsius) and repeatability of ±0.05%, ensuring the accuracy and stability of the output signal.

In terms of electrical performance, the 1769-OF4-CC module has current circuit protection and overvoltage protection up to 40mA, which can effectively prevent damage caused by circuit overload and high

 voltage to the equipment. Its rated operating voltage is 30 volts DC, which ensures the stable operation of the module under normal working conditions.

The module also has a compact size and light weight for easy installation and portability. It measures 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches) and weighs 280 grams (0.61 pounds), making it easy to deploy

 in space-constrained industrial automation environments.

In terms of compatibility, the 1769-OF4-CC module is compatible with MicroLogix 1500 and CompactLogix controllers, making it easy to integrate into existing automation systems for seamless connectivity and

efficient communication.
