>>>>>型號:SST-PB3-CLX 通信模塊 機箱模塊
【功能描述】

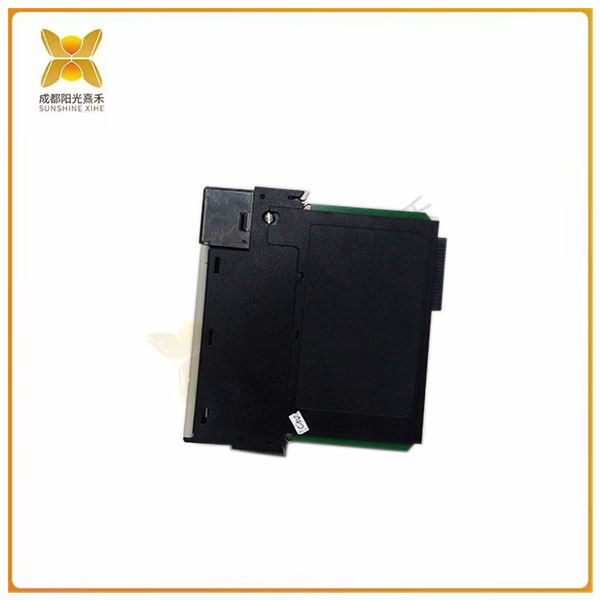

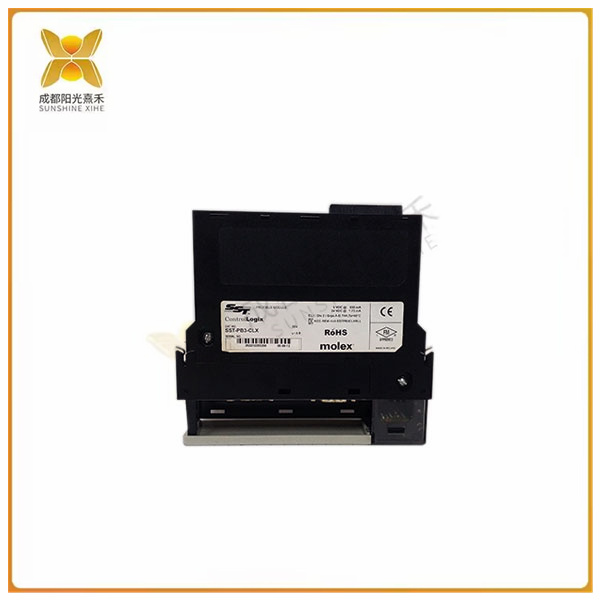

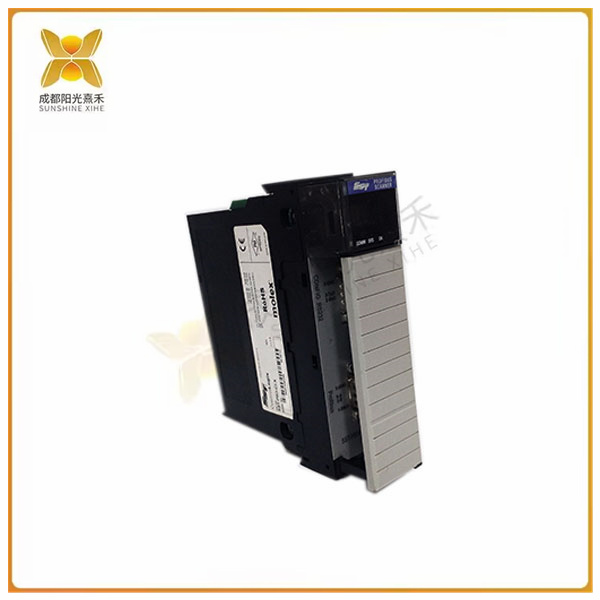

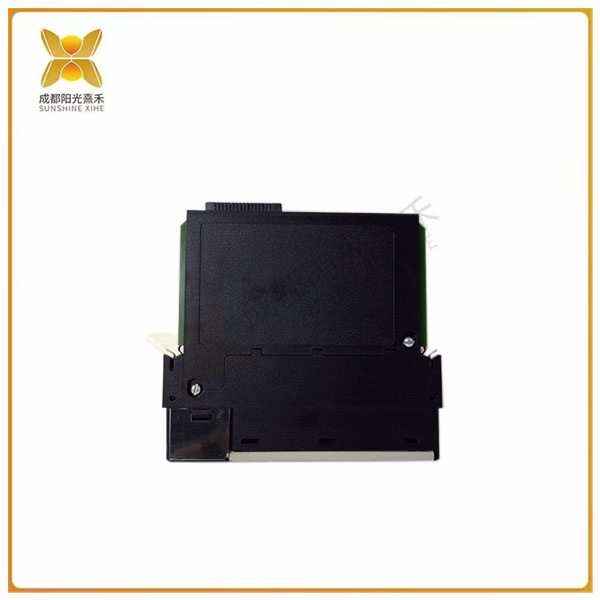

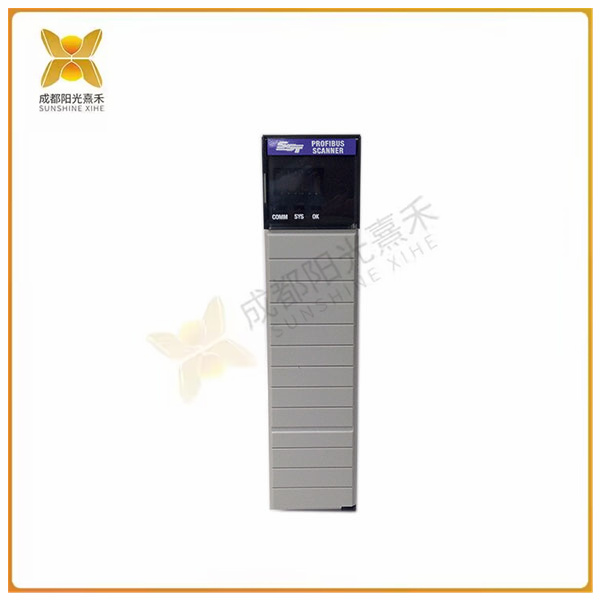

SST-PB3-CLX-RLL模塊是與Allen-Bradley的ControlLogix系列廣泛配合使用的機箱模塊。該機箱模塊由 Molex 設計和制造。在通信方面，該模塊配備了帶 9 個引腳的 PROFIBUS D-sub 母頭模塊。SST-PB3-CLX-RLL模塊重430克。該模塊是用于 Allen-Bradley 1756 背板系統和霍尼韋爾 PlantScape 系統的 PROFIBUS 掃描器。它有助于實現CLX處理器和位于PROFIBUS網絡上的遠程I/O設備之間的通信鏈路。該模塊可以使用SST PROFIBUS配置工具進行配置和編程。此工具有助于配置網絡上的 I/O。輸入和輸出數據映射到 ControlLogix 5550 控制器的 I/O 數據陣列中。它還顯示連接狀態和模塊正常運行期間可能發生的任何故障。LCD 面板下方有 3 個 LED 指示燈，顯示模塊的 COMM、SYS 和 OK 狀態。COMM LED 指示網絡健康狀態，SYS LED 指示 PROFIBUS 主站的健康狀態，它還在 RUN 模式下掃描所有從站單元，OK LED 指示模塊的初始化是否完成以及模塊是否準備好運行。SST-PB3-CLX-RLL模塊的工作溫度范圍為0至60攝氏度。
SST-PB3-CLX-RLL是Profibus掃描器模塊，兼容1756 ControlLogix自動化平臺或霍尼韋爾PlantScape控制系統。該模塊由羅克韋爾自動化的 encompass 合作伙伴公司 Molex 制造。
SST-PB3-CLX-RLL是單插槽模塊，可直接安裝于1756機箱的任何可用插槽。單個機架中最多可安裝八 （8） 個模塊，從而實現 Logix 處理器和 Profibus DP 從站設備之間的通信。它有一 （1） 個 9 針 sub-D 連接器，支持多達 125 個 DP 從設備進行通信。該模塊支持Profibus網絡的標準傳輸速度，如9600、19200、31.25k、45.45k、93.75k、187.5k、500k、1.5M、3M、6M和12M波特率。此外，該模塊可以與多個Profibus主站和從站一起操作，利用上述傳輸速度。
SST-PB3-CLX-RLL支持同步和凍結命令，當作為Profibus主設備運行時;每個連接的從設備最多支持 122 個輸入數據字和 122 個輸出數據字。此外，它可以配置為最多偵聽 15 個連接和 1 個輸出連接。同樣，該模塊支持 Profibus DPV1 主站服務，包括 1 類：MSAC1_Read、MSAC2_Write 和 2 類：MSAC2_Initiate、MSAC2_Read、MSAC2_Write、MSAC2_Idle 和 MSAC2_Abort。
>>>>>型號:SST-PB3-CLX 通信模塊 機箱模塊
【英文介紹】
The SST-PB3-CLX-RLL module is a chassis module used extensively with Allen-Bradley's ControlLogix series. The chassis module was designed and manufactured by Molex. In terms of communication, the module is equipped with a PROFIBUS D-sub female head module with 9 pins. The SST-PB3-CLX-RLL module weighs 430 grams. The module is a PROFIBUS scanner for the Allen-Bradley 1756 backplane system and Honeywell PlantScape system. It facilitates communication links between CLX processors and remote I/O devices located on the PROFIBUS network. The module can be configured and programmed using the SST PROFIBUS configuration tool. This tool helps to configure I/O on the network. The input and output data are mapped to the I/O data array of the ControlLogix 5550 controller. It also shows the connection status and any failures that may occur during the normal operation of the module. There are three LED indicators below the LCD panel to display the COMM, SYS, and OK status of the module. The COMM LED indicates the network health status, the SYS LED indicates the health status of the PROFIBUS master station, it also scans all slave station units in RUN mode, and the OK LED indicates whether the initialization of the module is complete and whether the module is ready for operation. The SST-PB3-CLX-RLL module operates in a temperature range of 0 to 60 degrees Celsius.
The SST-PB3-CLX-RLL is a Profibus scanner module that is compatible with the 1756 ControlLogix automation platform or Honeywell PlantScape control system. The module was manufactured by Molex, Rockwell Automation's encompass partner company.
The SST-PB3-CLX-RLL is a single-slot module that can be installed directly into any available slot in the 1756 chassis. Up to eight (8) modules can be installed in a single rack, enabling communication between the Logix processor and the Profibus DP slave equipment. It has one (1) 9-pin sub-D connector that supports up to 125 DPS for communication from the device. The module supports the standard transmission speeds of the Profibus network, such as 9600, 19200, 31.25k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M and 12M baud rates. In addition, the module can operate with multiple Profibus master and slave stations, taking advantage of the above-mentioned transmission speeds.
The SST-PB3-CLX-RLL supports synchronization and freezing commands when running as a Profibus master; Each connected slave supports up to 122 input data words and 122 output data words. In addition, it can be configured to listen for up to 15 connections and 1 output connection. Similarly, the module supports Profibus DPV1 master station services, including class 1: MSAC1_Read, MSAC2_Write, and class 2: MSAC2_Initiate, MSAC2_Read, MSAC2_Write, MSAC2_Idle, and MSAC2_Abort.
