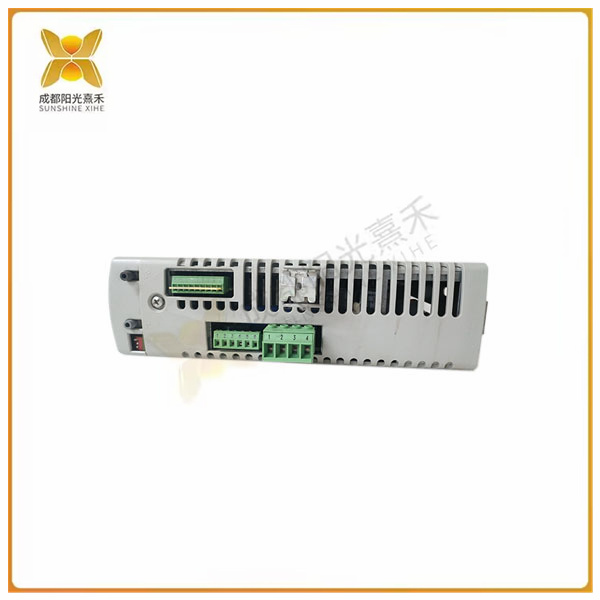

>>>>>型號:2094-BM01-S 多軸驅動器 電纜直接連接到受控設備
【功能描述】
Kinetix 6000 多軸驅動器 2094-BM01-S 是一款軸模塊，可通過反饋電纜直接連接到受控設備。該軸模塊與集成軸模塊、控制模塊、分流模塊和構成 Kinetix Drive 運動控制系統的其他基本組件一起安裝在電源軌上。
Kinetix 驅動器使用戶能夠?qū)崿F(xiàn)電機的同步運動控制，通常用于制造業的機器。該驅動系統提供精確和同步的控制，使電機和兼容的運動設備作為一個單元運行。
2094-BM01-S 是一款 400VAC 級軸模塊，A 系列驅動器的連續電流為 6.1 A，峰值電流為 9.2A，B 系列和 C 系列驅動器的連續電流為 15.3 A，連續輸出功率為 3.9 kW。它具有 98% 的效率和對稱 200,000 A （rms） 的短路額定電流。它具有集成分流器，連續功率為 50W，峰值功率為 5.6 kW。該模塊的內部分流電阻的電阻值為 115 歐姆。
該模塊的工作溫度要求為 0...50 °C （32...122 °F），相對濕度為 5...95% 非冷凝。它也可以在 1000 米（3281 英尺）的高度運行而不會降額，在 3000 米（9843 英尺）的高度下運行，具有降額功能。該模塊可接受的振動范圍為 5...55 Hz @ 0.35 mm （0.014 in.） 雙振幅，連續位移;55...500 Hz @ 2.0 g 峰值恒定加速度，而沖擊額定值為 15 g 在 11 ms 半正弦脈沖內。
2094-BM01-S 軸模塊具有增強的系統性能和操作安全性。其安全扭矩關閉功能可防止電路跳閘時重新啟動，從而提高生產率，同時減少機器停機時間。2094-BM01-S 通過了 ISO 13849-1 PLe/SIL3 認證，需要外部安全繼電器才能滿足 EN954-1 3 類工業標準。安全速度監控允許用戶在不關閉整臺機器的情況下監控和降低應用速度以執行工作。該驅動器還具有一個多圈絕對值編碼器，可在電源故障期間保持設備位置。2094-BM01-S 的峰值增強配置可處理需要在有限時間內快速加速和減速的運動應用。這減少了所需的軸模塊數量，從而減少了面板空間要求
>>>>>型號:2094-BM01-S 多軸驅動器 電纜直接連接到受控設備
【英文介紹】
The Kinetix 6000 multi-Axis Driver 2094-BM01-S is a shaft module that connects directly to controlled devices via feedback cables. The shaft module is mounted on the power rail along with the integrated shaft module, control module, shunt module and other essential components that make up the Kinetix Drive motion control system.
Kinetix drives enable users to achieve synchronous motion control of motors, commonly used in manufacturing machines. The drive system provides precise and synchronous control, enabling the motor and compatible motion equipment to operate as a single unit.
The 2094-BM01-S is A 400VAC class shaft module with 6.1A continuous current and 9.2A peak current for A-series drivers, 15.3A continuous current for B-series and C-series drivers, and 3.9 kW continuous output power. It has 98% efficiency and A symmetrical 200,000 A (rms) short-circuit current rating. It has an integrated shunt with a continuous power of 50W and a peak power of 5.6kW. The internal shunt resistor of the module has a resistance value of 115 ohms.
The module's operating temperature requirement is 0... 50 °C (32... 122 °F) with a relative humidity of 5... 95% non-condensing. It can also operate at a height of 1,000 meters (3,281 ft) without derating and at a height of 3,000 meters (9,843 ft) with derating. The acceptable vibration range of the module is 5... 55 Hz@0.35mm (0.014 in.) double amplitude, continuous displacement; 55... 500 Hz @ 2.0g peak constant acceleration, while the impact rating is 15 g in 11 ms half sinusoidal pulses.
The 2094-BM01-S shaft module features enhanced system performance and operational safety. Its safe torque off function prevents a restart in the event of a circuit trip, thereby increasing productivity while reducing machine downtime. The 2094-BM01-S is ISO 13849-1 PLe/SIL3 certified and requires an external safety relay to meet the EN954-1 Category 3 industry standard. Safe speed monitoring allows users to monitor and slow down applications to perform work without shutting down the entire machine. The drive also has a multi-turn absolute encoder that holds the device in place during power failures. The peak enhancement configuration of the 2094-BM01-S handles sports applications that require rapid acceleration and deceleration in limited time. This reduces the number of shaft modules required, thereby reducing panel space requirements
