【功能描述】

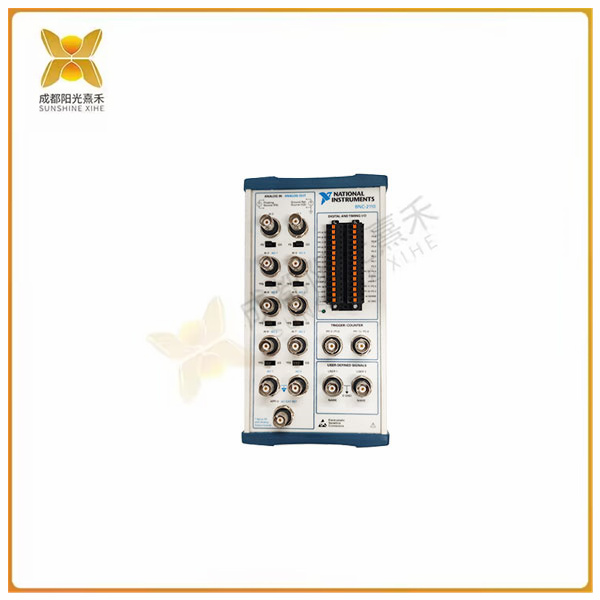

National Instruments BNC-2110 接線端子

BNC-2110（部件號：777643-01）是一款屏蔽， DIN導軌， 桌面安裝接線端子。該接線端子提供 68 針、母頭 SCSI 到 1 針母頭 BNC（15 個）、30 針母頭、彈簧端子連接。NI BNC-2110 設計 用于 各種 NI 多功能 I/ O 和 模擬 輸出 設備。BNC-2110 有助于簡化模擬信號以及一些數字信號與 DAQ 設備的連接。使用此接線端子，BNC-2110 帶有屏蔽外殼，因此您可以實現更好的測量完整性。桌面安裝和DIN導軌安裝配置可通過此屏蔽接線端子實現。

該設備使用NI-DAQmx驅動軟件運行，該軟件與LabVIEW、LabWindows/CVI或Measurement Studio等軟件包兼容?？梢允褂肕easurement & Automation Explorer（MAX）工具配置設備硬件。

NI BNC-2110 可 與 100 引腳 或 68 引腳 E/ M/ S 系列 或 68 引腳 NI-672x、 NI-671x 和 NI-673x 模擬 輸出 （AO 系列） 數據采集設備 配合使用 。NI BNC-2110 廣泛用于要求苛刻的生產、測試和實驗室環境。BNC-2110 僅用于差分模擬輸入信號。使用此接線端子，您可以通過將 BNC 連接器下方的相應開關移動到 FS 位置來測量浮動信號。此外，該接線端子還可以測量接地參考信號。對于以地為參考的信號，將用于 AI 通道的 BNC 連接器下方的開關移動到 GS 位置。該設備配備 15 個 BNC 連接器，并具有一個 68 針公 SCSI 公 I/O 連接器。

 >>>>>型號:BNC-2110  屏蔽接線端子  模擬輸出設備

【英文介紹】

National Instruments BNC-2110 terminal

Ncc-2110 (Part number: 777643-01) is a shielded, DIN rail, tabletop mount terminal. The wiring terminal provides 68 pins, female head SCSI to 1 pin female head BNC (15), 30 pin female head, spring terminal connection. The NI BNC-2110 is designed for a wide range of NI multifunction I/ O and analog output devices. The BNC-2110 helps simplify the connection of analog signals, as well as some digital signals, to DAQ devices. With this terminal, the BNC-2110 comes with a shielded housing, so you can achieve better measurement integrity. Desktop mounting and DIN rail mounting configurations can be achieved with this shielded terminal.

The device runs with NI-DAQmx driver software, which is compatible with packages such as LabVIEW, LabWindows/CVI or Measurement Studio. Device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI BCN-2110 can be used with 100-pin or 68-pin E/ M/ S series or 68-pin NI-672X, NI-671X and NI-673X analog output (AO series) data acquisition devices. The NI BNC-2110 is widely used in demanding production, test and laboratory environments. BNC-2110 is used only for differential analog input signals. With this terminal, you can measure the floating signal by moving the corresponding switch under the BNC connector to the FS position. In addition, the terminal can also measure the ground reference signal. For a ground-referenced signal, move the switch under the BNC connector for the AI channel to the GS position. The device is equipped with 15 BNC connectors and features a 68-pin male SCSI male I/O connector.
