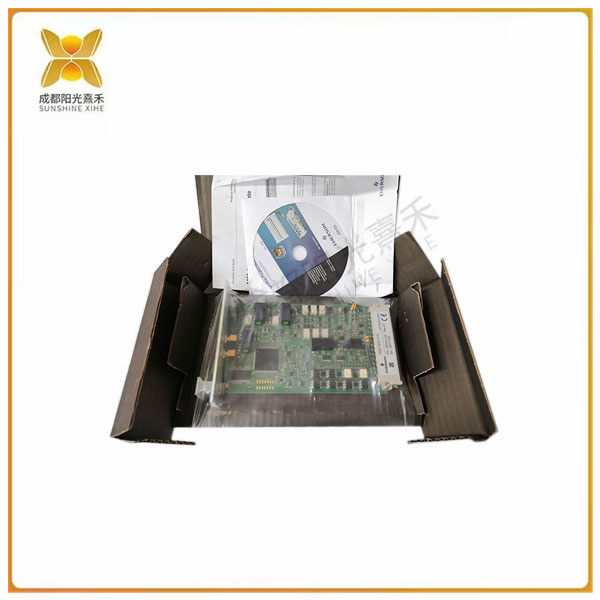

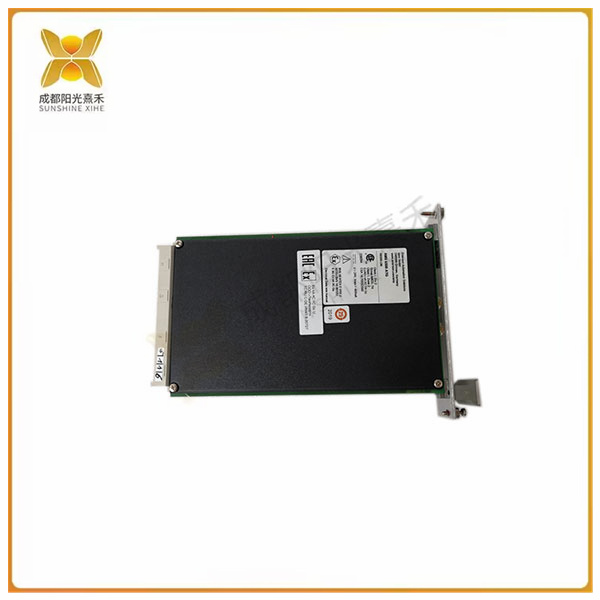

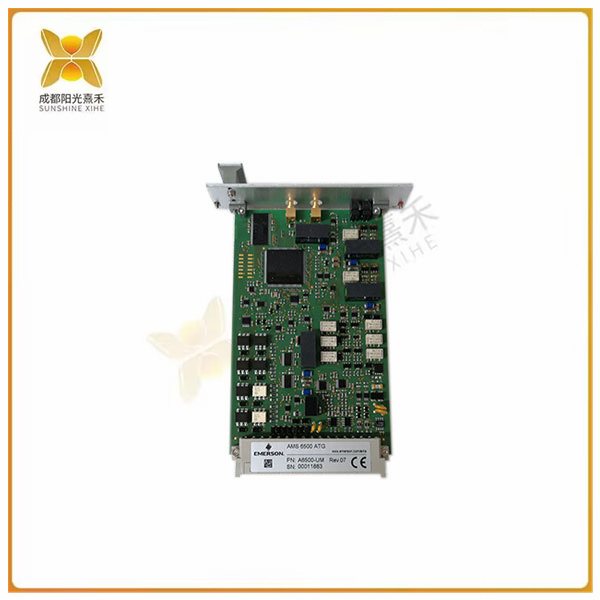

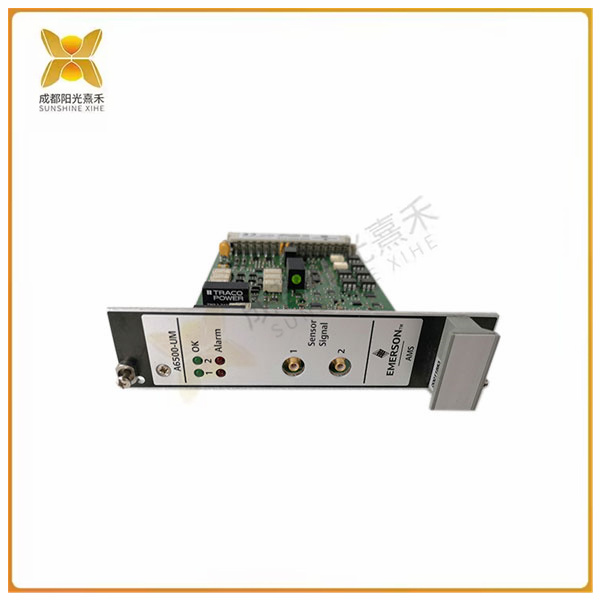

>>>>>型號:A6500-UM ATG機械保護系統 輸入通道
【功能描述】
A6500-UM通用測量卡是AMS 6500 ATG機械保護系統的一個組成部分。該卡配備了2個傳感器輸入通道(獨立或組合，根據所選的測量模式)，可與最常見的傳感器一起工作，如渦流、壓電(加速度計或速度計)、地震(電動力)、LF(低頻軸承振動)、霍爾效應和LVDT(與A6500-LC結合)傳感器。除此之外，該卡包含5個數字輸入和6個數字輸出。
測量信號通過內部rs485總線傳輸?shù)紸6500-CC Com卡，并轉換為Modbus RTU和Modbus TCP/ IP協議，進一步傳輸?shù)街鳈C(jī)或分析系統。此外，Com卡通過面板上的USB插座提供通信，用于連接PC/筆記本電腦進行卡的配置和測量結果的可視化。除此之外，測量結果可以通過模擬輸出0/4 – 20 mA輸出。
>>>>>型號:A6500-UM ATG機械保護系統 輸入通道
【英文介紹】
The A6500-UM Universal measuring card is an integral part of the AMS 6500 ATG mechanical protection system. The card is equipped with 2 sensor input channels (independent or combined, depending on the selected measurement mode) that work with the most common sensors such as vortex, piezoelectric (accelerometer or speedometer), seismic (electro-dynamic), LF(low frequency bearing vibration), Hall effect and LVDT(combined with A6500-LC) sensors. In addition, the card contains 5 digital inputs and 6 digital outputs.
The measurement signal is transmitted to the A6500-CC Com card via the internal rs485 bus and converted to Modbus RTU and Modbus TCP/ IP protocols for further transmission to the host or analysis system. In addition, the Com card provides communication through a USB socket on the panel, which is used to connect a PC/ laptop for card configuration and visualization of measurement results. In addition, the measurement results can be output by analog output 0/4-20 mA.
