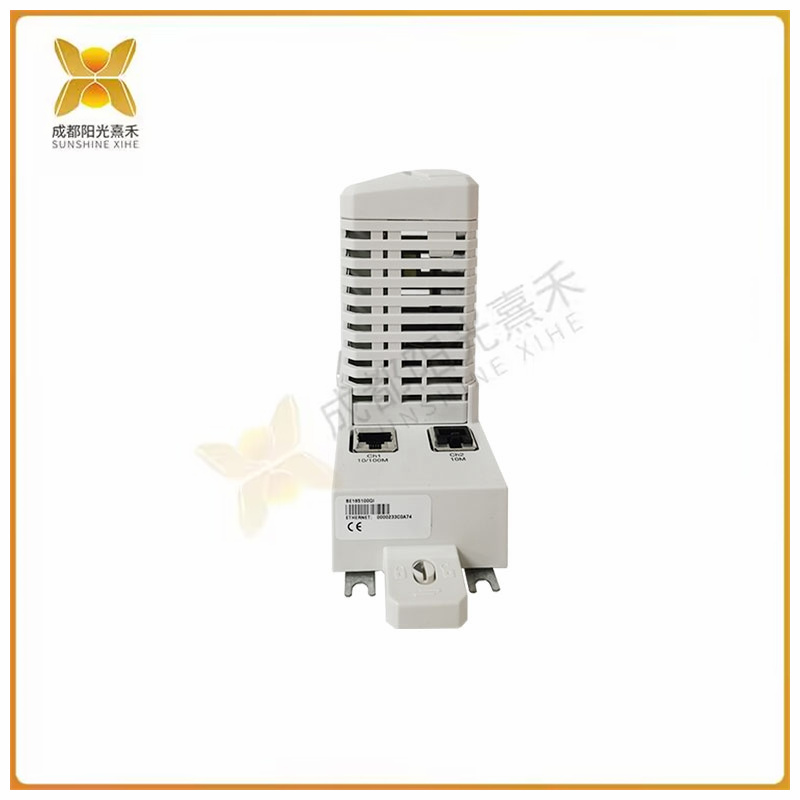

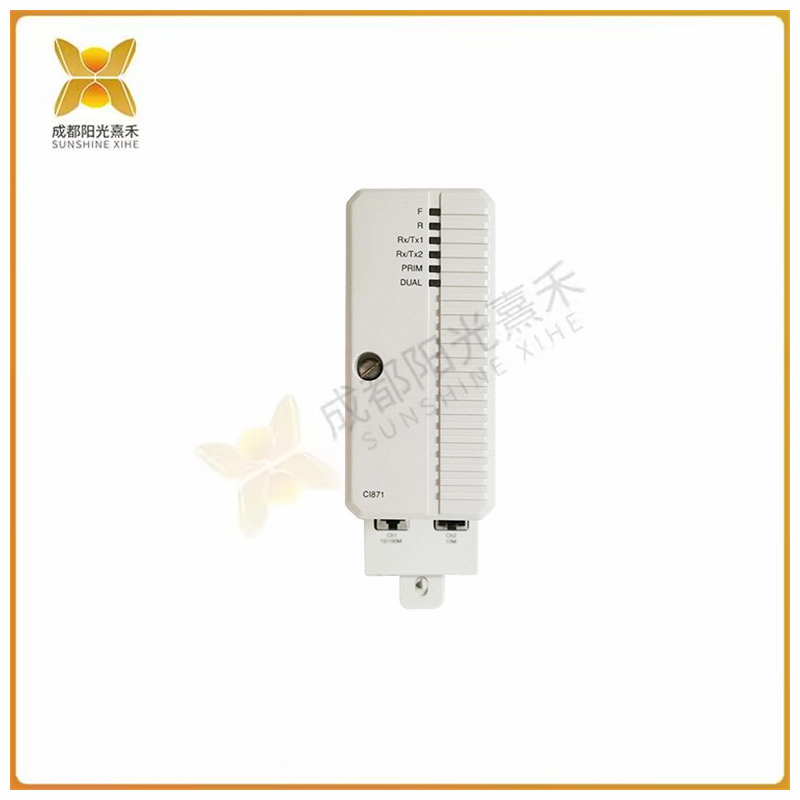

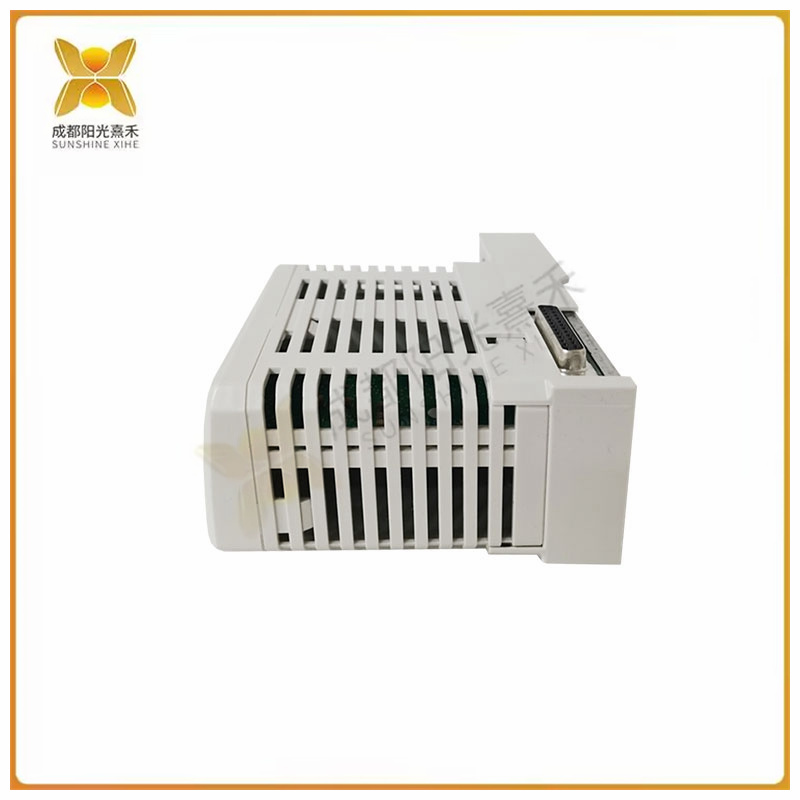

>>>>>型號:ABB-CI871K01 通信接口模塊  AC800M通信接口

【功能描述】

CI871K01 ABB 通信接口模塊 CI871 CI871AK01 CI871A CI856 CI861 CI855 CI854 CI854AK01

CI871A是通過以太網連接到PROFINET IO設備的AC 800M通信接口。TP867 Baseplate有兩個RJ45以太網連接器，但只有支持100Mbps的CH1連接器用于PROFINET IO連接。以太網電纜必須通過以太網交換機連接到PROFINET IO網絡。

CI871擴展單元包含CEX總線邏輯、通信單元和DC/DC轉換器，用于通過CEX總線提供所需電壓+24 V。

CI871A模塊僅適用于System 800xA 6.0.3.3、6.1.1和更高版本

 >>>>>型號:ABB-CI871K01 通信接口模塊  AC800M通信接口

【英文介紹】

CI871K01 ABB Communication Interface module CI871 CI871AK01 CI871A CI856 CI861 CI855 CI854 CI854AK01

The CI871A is an AC 800M communication interface connected to PROFINET IO devices over Ethernet. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used for PROFINET IO connections. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.

The CI871 expansion unit contains the CEX bus logic, communication unit, and DC/DC converter to provide the required voltage +24 V over the CEX bus.

The CI871A module is only available for System 800xA 6.0.3.3, 6.1.1 and later
