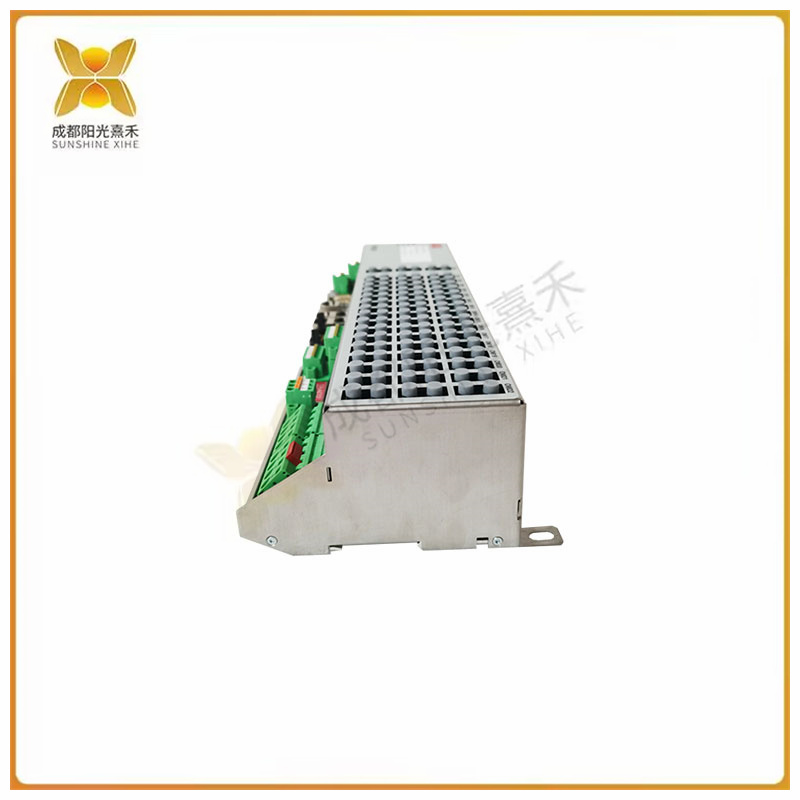

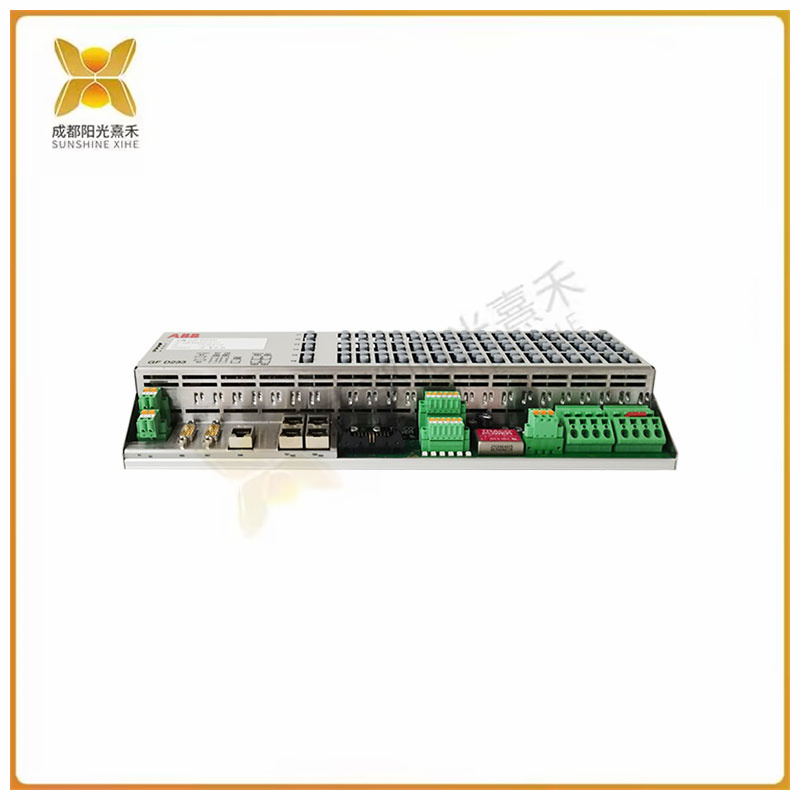

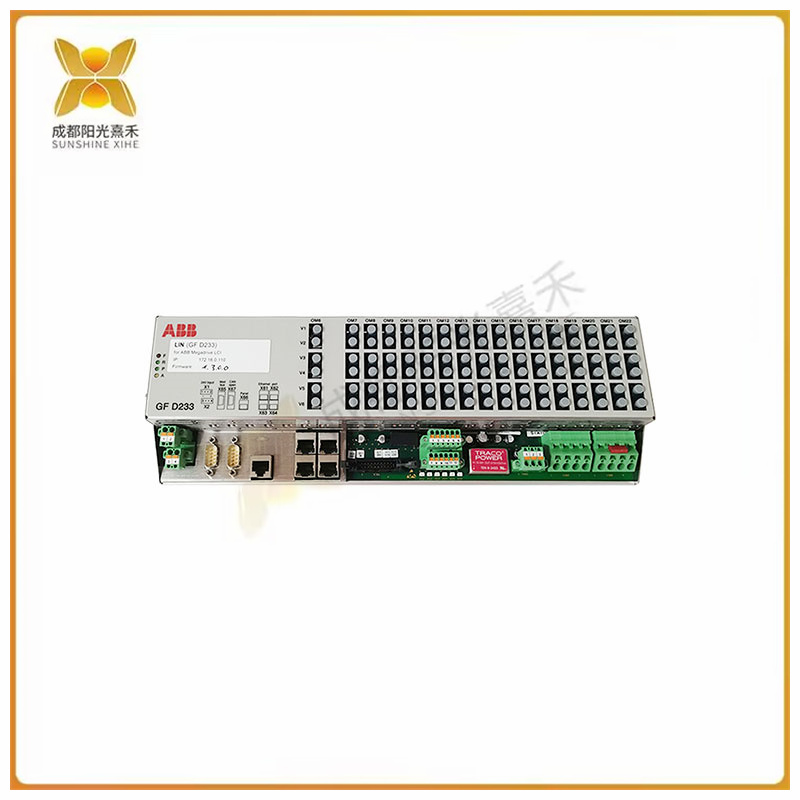

>>>>>型號:ABB-GFD233A 靜態勵磁系統 輸出電壓的精確控制

【功能描述】

ABB-GFD233A靜態勵磁系統的主要作用是提供可調節的直流電流來激勵同步發電機的轉子，從而實現對發電機輸出電壓的精確控制。同時，它還可以增強并列運行發電機間無功功率分配的穩定性和發電機的運行穩定性。

靜態勵磁系統是一種勵磁系統，其原理是通過控制電壓和電流，實現對發電機的勵磁電流的調節。在發電機中，勵磁系統的作用是產生磁場，使發電機能夠產生電流。而靜態勵磁系統則是通過調節勵磁電流的大小和方向，來控制發電機的輸出電壓和頻率，從而實現對電力系統的調節。

靜態勵磁系統通常由勵磁變壓器、勵磁電源和控制裝置等組成。其中，勵磁變壓器主要負責將交流電轉換為直流電，為發電機提供勵磁電流；勵磁電源則負責提供勵磁電流；控制裝置則通過對勵磁電流的實時監測和控制，確保發電機的穩定運行。

與傳統的機械式勵磁系統相比，靜態勵磁系統具有調節精度高、響應速度快、穩定性好等優點。因此，在現代化的電力系統控制中得到廣泛應用。

 >>>>>型號:ABB-GFD233A 靜態勵磁系統 輸出電壓的精確控制

【英文介紹】

The main role of the ABB-GFD233A static excitation system is to provide an adjustable DC current to excite the rotor of the synchronous generator, thus achieving precise control of the output voltage of the generator. At the same time, it can also enhance the stability of reactive power distribution between parallel running generators and the running stability of generators.

Static excitation system is a kind of excitation system, its principle is to control the voltage and current to achieve the regulation of the excitation current of the generator. In a generator, the role of the excitation system is to generate a magnetic field that enables the generator to generate current. The static excitation system is to control the output voltage and frequency of the generator by adjusting the size and direction of the excitation current, so as to realize the regulation of the power system.

Static excitation system is usually composed of excitation transformer, excitation power supply and control device. Among them, the excitation transformer is mainly responsible for converting alternating current to direct current to provide excitation current for the generator; Excitation power supply is responsible for providing excitation current; The control device ensures the stable operation of the generator by monitoring and controlling the excitation current in real time.

Compared with the traditional mechanical excitation system, the static excitation system has the advantages of high adjustment precision, fast response speed and good stability. Therefore, it has been widely used in modern power system control.
