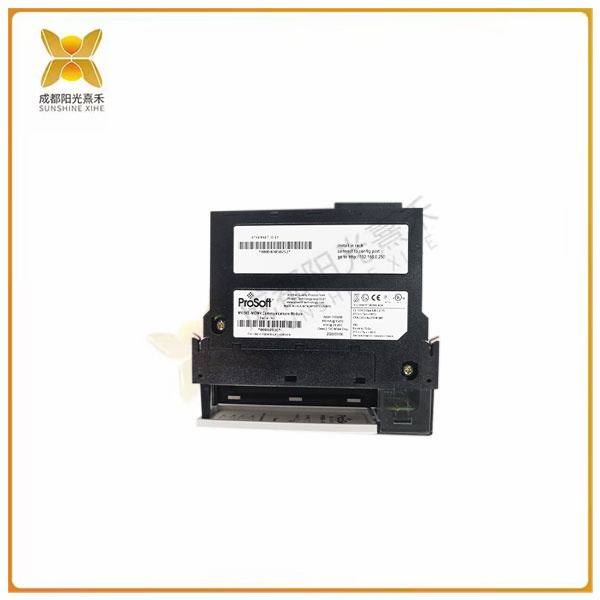

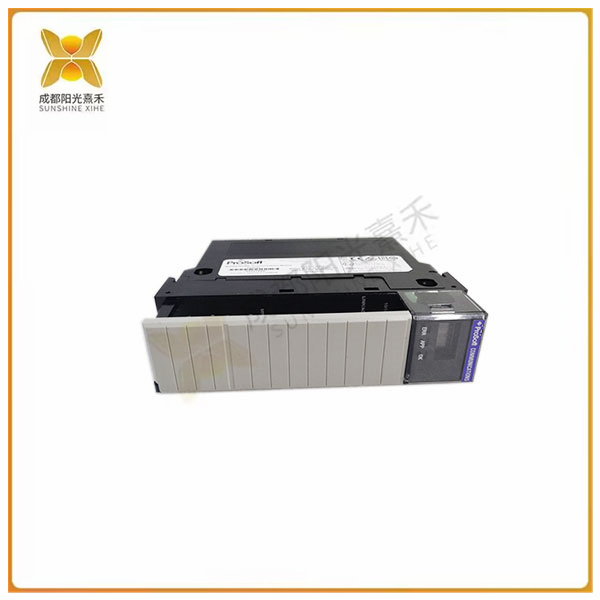

>>>>>型號:MVI56-MCM 主站/從站通信模塊 串行通信協議的設備

【功能描述】

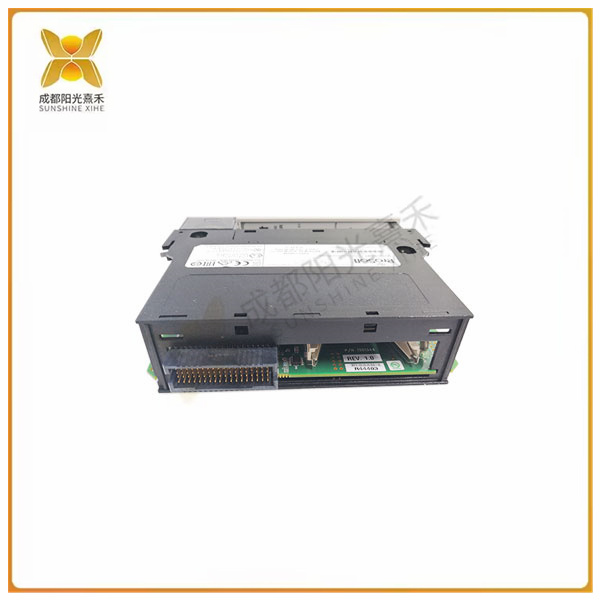

MVI56-MCM模塊對ControlLogix背板使用方式是非常獨特的。通過背板，模塊使用自身

的輸入和輸出鏡像以分頁的方式，接收數據和發送數據到處理器。鏡像刷新的頻率取決于

用戶為模塊定義的計劃掃描頻率（scheduled scan rate）和模塊的通訊負荷。典型的刷新

頻率在2到10毫秒之間。

雙向的數據傳送是這樣實現的，模塊在其輸入鏡像中填充數據，再發送到處理器。梯形邏

輯程序把輸入鏡像中的數據放置在處理器的控制器標簽（Controller Tags）中。模塊的輸

入鏡像是250個字。這個大型數據區讓數據在模塊和處理器之間快速的交換。

需要傳送到模塊的數據被處理器插放到模塊的輸出鏡像。模塊程序會把這些數據提取出

來，放置在模塊的內部數據庫。模塊的輸出鏡像共有248個字。這個大型數據區讓數據在

模塊和處理器之間快速的交換

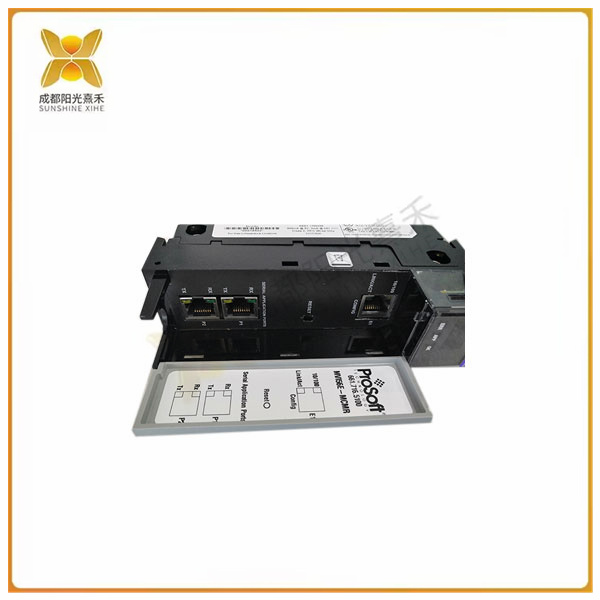

MVI56E-MCM/MCMXT

使用MVI56E增強型Modbus主站/從站通信模塊，羅克韋爾自動化?ControlLogix?處理器可以輕松連接采用RTU/ASCII串行通信協議的設備。

MVI56E-MCM和MVI56E-MCMXT作為ControlLogix背板上的輸入/輸出模塊，使得Modbus數據對于處理器來說就像是I/O數據。與處理器進行的數據傳輸與Modbus網絡上的通信異步。模塊具備兩個可獨立配置的串行端口，可運行在相同或不同的Modbus網絡中。每個端口都可配置為Modbus主站或從站，共享同一個由用戶控制的10000字?jǐn)?shù)據庫。

兩個模塊在功能上完全相同。MVI56E-MCM用于標準過程應用項目。MVI56E-MCMXT用于Logix-XT?控制平臺，可工作在極端環境中。它能耐受更高的工作溫度，并且具備在嚴苛或腐蝕條件下提供保護的敷形涂層。

 >>>>>型號:MVI56-MCM 主站/從站通信模塊 串行通信協議的設備

【英文介紹】

The MVI56-MCM module is unique in its use of the ControlLogix backplane. Through the backplane, the module uses itself

The input and output mirrors in a paging manner, receiving data and sending data to the processor. The frequency of image refresh depends on

The scheduled scan rate defined by the user for the module and the communication load of the module. Typical refresh

The frequency is between 2 and 10 milliseconds.

Bidirectional data transfer is implemented in such a way that the module fills the data in its input image and sends it to the processor. Trapezoidal logic

The assembler places the data in the input image in the Controller Tags of the processor. Module output

It's like 250 words. This large data area allows data to be exchanged quickly between modules and processors.

The data that needs to be sent to the module is plugged into the output image of the module by the processor. The module program will extract the data

To place in the module's internal database. The output image of the module contains 248 characters. This large data area keeps the data in

Fast exchange between modules and processors

MVI56E-MCM/MCMXT

With the MVI56E Enhanced Modbus master/Slave communication module, Rockwell Automation ?ControlLogix? processors can easily connect devices using the RTU/ASCII serial communication protocol.

The MVI56E-MCM and MVI56E-MCMXT act as input/output modules on the ControlLogix backplane, making Modbus data look like I/O data to the processor. The data transfer with the processor is asynchronous with the communication on the Modbus network. The module has two independently configurable serial ports that can operate in the same or different Modbus networks. Each port can be configured as a Modbus master or slave, sharing the same user-controlled 10,000-word database.

The two modules are functionally identical. The MVI56E-MCM is used for standard process application projects. The MVI56E-MCMXT is used in the Logix-XT? control platform to operate in extreme environments. It withstands higher operating temperatures and has a form coating that provides protection under harsh or corrosive conditions.
