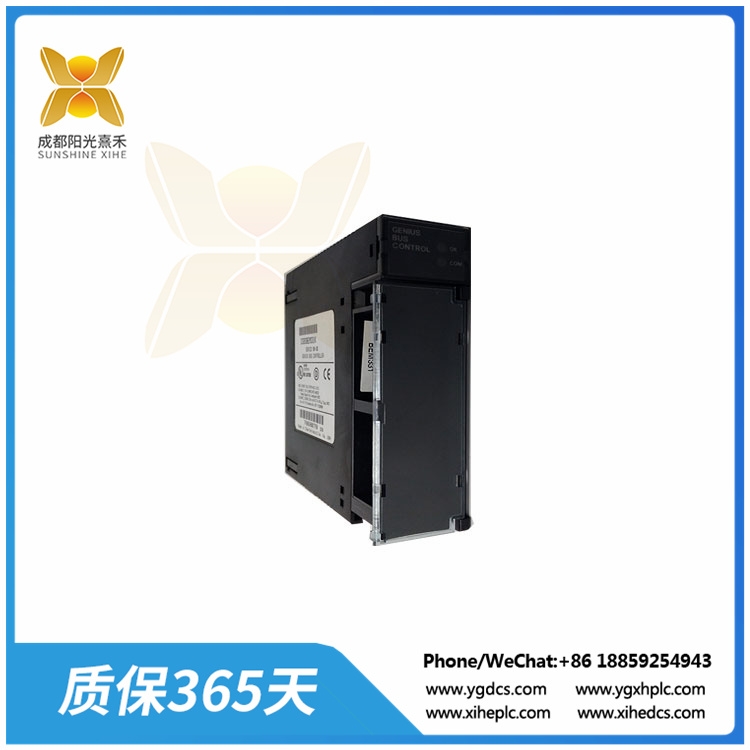

IC693ALG392 | 90-30 系列 | 模擬輸出模塊


　　IC693ALG392是 90-30 系列模塊。該模塊是一個模擬輸出模塊，通常用于實現儀器或設備的調制控制，例如變頻驅動器 (VFD)、控制閥、定位器、轉換器和其他類似調制設備。它還可用于將模擬數據重新傳輸?shù)浇邮赵?，例如記錄儀、數據記錄器和其他兼容的接收設備。

　　該IC693ALG392具有八 (8) 個輸出通道，可配置分辨率為 15 或 16 位，具體取決于所選的模擬輸出范圍。它能夠提供電壓信號，例如 0 至 +10 伏(單極)/ -10 至 +10 伏(雙極)電壓和 0 至 20 毫安/4 至 20 毫安輸出信號。為了能夠生成輸出模擬信號，該模塊需要隔離的 24VDC 電源，直接連接到模塊的指定接線端子。

　　該模塊經過工廠校準。校準信息包括 0 至 20 mA 的 .625 μA;4 至 20 mA 為 0.5 μA;和 .3125 mV 的電壓(每次計數)。該模塊的每個通道在4-20 mA時的更新速率為8(8)毫秒，分辨率為0.5 μA (1 LSB = 0.5 μA);0-20 mA為0.625 μA (1 LSB = 0.625 μA);0-10VDC輸出信號為0.3125 mV (1 LSB = 0.3125 mV)，-10至+10VDC輸出信號為0.3125 mV (1 LSB = 0.3125 mV)。

　　該模塊安裝在 RX3i 機箱的任何插槽上。每個 RX3i 機架允許的實例數量沒有限制。實例數量取決于特定 RX3i 控制器支持的模擬數據數量。


　　IC693ALG392 is a 90-30 series module. This module is an analog output module that is commonly used to implement modulation control of instruments or devices, such as variable frequency drivers (VFDS), control valves, positioners, converters, and other similar modulation devices. It can also be used to retransmit analog data to receiving elements such as loggers, data loggers and other compatible receiving devices.

　　The IC693ALG392 has eight (8) output channels and can be configured with a resolution of 15 or 16 bits, depending on the analog output range selected. It is capable of providing voltage signals such as 0 to +10 volts (unipolar) / -10 to +10 volts (bipolar) and 0 to 20 mA /4 to 20 mA output signals. In order to be able to generate an output analog signal, the module requires an isolated 24VDC power supply, connected directly to the specified terminal of the module.

　　The module is factory calibrated. Calibration information includes.625 μA from 0 to 20 mA; 0.5 μA from 4 to 20 mA; And.3125 mV voltage (per count). The module has an update rate of 8 (8) ms per channel at 4-20 mA and a resolution of 0.5 μA (1 LSB = 0.5 μA); 0-20 mA was 0.625 μA (1 LSB = 0.625 μA). The 0-10VDC output signal is 0.3125 mV (1 LSB = 0.3125 mV), and the -10 to +10VDC output signal is 0.3125 mV (1 LSB = 0.3125 mV).

　　The module is installed in any slot of the RX3i chassis. There is no limit to the number of instances allowed per RX3i rack. The number of instances depends on the amount of analog data supported by a particular RX3i controller.
