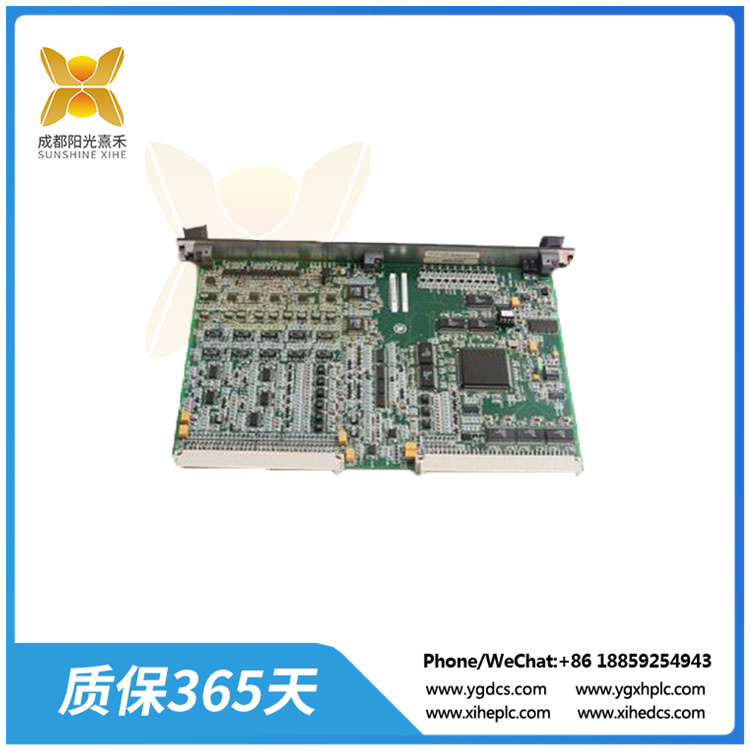

IS200TBAIH1CDC  |  模擬I/O端子板  |  用于單工或TMR應用

　　模型:IS200TBAIH1CDC

　　單板類型:模擬I/O端子板

　　I/O型AI和AO;10個AI和2個AO

　　系統應用類型:simplex或TMR

　　產品描述

　　IS200TBAIH1CDC是GE為Mark VI系統生產的模擬輸入端子板，通常與模擬輸入板(VAIC)一起用于單工或TMR應用。當TBAI與VAIC模塊配合使用時，最多可使用兩塊TBAI板，每塊TBAI板將有10個輸入和2個輸出。在模擬輸入和輸出之間，有12個I/ OS;兩個是模擬輸出，其余十個是模擬輸入。電路板的輸入和輸出具有各種特性。特點如下:

　　輸出500歐姆(4- 20ma)或50歐姆(0- 200ma)

　　250歐姆(4-20 mA)或+/ -5,10 VDC輸入

　　電流限制:每輸入+24伏直流

　　0.2A， + 24v限流電源

　　500歐姆(4- 20ma)輸出

　　250歐姆(4- 20ma)或500歐姆(+/ - 1ma)輸入

　　Model: IS200TBAIH1CDC

　　Board type: Analog I/O terminal board

　　I/O type AI and AO; 10 AI’s and 2 AO’s

　　System application type: simplex or TMR

　　Product description

　　The IS200TBAIH1CDC, an analog input terminal board manufactured by GE for Mark VI systems, is commonly used with analog input boards (VAIC) in simplex or TMR applications. When TBAI is used with a VAIC module, up to two TBAI boards can be used, and each TBAI board will have 10 inputs and 2 outputs. Between the analog input and output, there are 12 I/ OS; Two are analog outputs and the remaining ten are analog inputs. The input and output of the board have various characteristics. Features are as follows:

　　500 ohms (4-20 mA) or 50 ohms (0-200 mA) output

　　250 ohms (4-20 mA) or +/ -5,10 VDC input

　　Current limit: +24 volts DC per input

　　0.2A, +24 V current limiting power supply

　　500 ohms (4-20 mA) output

　　250 ohms (4-20 mA) or 500 ohms (+/ -1 mA) input
