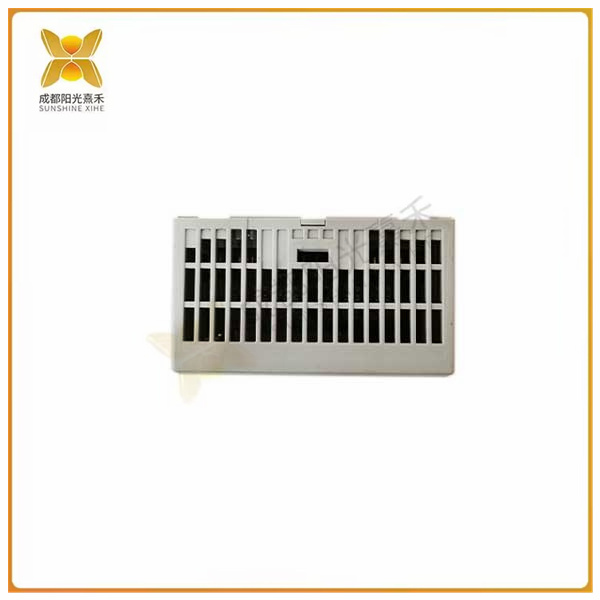

>>>>>型號:1794-OE12 高密度模擬輸出模塊 輸出通道 支持單端布線配置
【功能描述】
Allen-Bradley 1794-OE12 是一款高密度模擬輸出模塊，是 Flex IO 產品系列的一部分。該模塊具有十二 （12） 個輸出通道，可配置為 0-20mA、4-20 mA 電流信號和 +/- 10VDC 電壓信號。該模塊的通道是非隔離的，支持單端布線配置。
1794-OE12 與 1794-TB3G 和 1794-TB3GS 等端子底座一起使用，鍵開關位置為 4。它有一個開放式外殼，這意味著該模塊和整個 Flex I/O 組件必須安裝在外殼內，以提供足夠的工業元素保護。
1794-OE12 配有內部安裝的模數電路 （ADC） 轉換器。它將數字?jǐn)?shù)據轉換為模擬信號，轉換分辨率為 16 位，采用 2 補碼數據格式。對于電壓和電流信號，每個輸出通道的絕對精度均為 0.1% 滿量程 @ 25 °C，兩種信號配置的精度漂移均為 0.004% 滿量程/°C。
1794-OE12 的電流消耗為 80 mA，電源電壓要求為 10.5-31.2VDC。它的功耗為 7.68 W @ 24V DC，散熱為 26.2 BTU/hr @ 24V DC，隔離電壓為 50V（連續），基本絕緣型。通道之間沒有隔離。它的物理尺寸為 94.0 x 94.0 x 53.3 毫米或 3.7 x 3.7 x 2.1 英寸，并內置組診斷 LED。
1794-OE12 的工作溫度為 -20 至 60 °C （-4 至 140 °F），存儲溫度要求為 -40 至 85 °C （-40 至 185 °F），相對濕度為 5-95%。它的工作沖擊和振動額定值分別為 30 g 和 5 g @ 10...500 Hz。
1794-OE12 不需要校準。它的物理尺寸為 3.7 x 3.7 x 2.1 英寸，采用開放式外殼。它可以使用DIN導軌進行安裝。1794-OE12 模塊的輸出為 0 mA，直到配置完成。配置后，輸出信號范圍為 4-20 mA 和 0-20 mA，兩者均可由用戶配置，而可配置的輸出電壓范圍為 +/-10V。該模塊的 mA 輸出電阻負載為 0-750 ？在 24V DC 和最大電壓輸出電流負載 3 mA 時。其電流分辨率為0.641 μA/cnt，電壓分辨率為320 μV/cnt。該模塊標稱外接直流電源為24V DC，外接直流電源電壓范圍為10-31.2V DC，包括5%的交流紋波。該模塊的外部直流電源電流為 720 mA（10V DC）和 320 mA（24V DC）。1794-OE12 模塊還具有 80 mA 的 FlexBus 電流和 50V 的連續隔離電壓，該電壓已在 850V DC 下測試了 60 秒，尤其是在用戶與系統電源之間。電壓和電流端子的絕對精度均為0.1%滿量程（各為25%），電壓和電流端子的精度隨溫度的變化均為0.004%滿量程/攝氏度。該模塊的最大功耗在 10V DC 和 31.2V DC 時均為 4W，在 24V DC 時為 4.3 W，在 24V DC 時的最大散熱為 4.7 BTU/hr。該模塊的工作溫度為-20-60攝氏度，存儲溫度為-40-85攝氏度。它還具有 5-95% 的相對濕度，是非冷凝的。該模塊在 10-500 Hz 下還具有 30 g 的工作沖擊、50 g 的非工作沖擊和 5 g 的工作振動。
>>>>>型號:1794-OE12 高密度模擬輸出模塊 輸出通道 支持單端布線配置
【英文介紹】
The Allen-Bradley 1794-OE12 is a high-density analog output module that is part of the Flex IO product family. The module has twelve (12) output channels that can be configured for 0-20mA, 4-20 mA current signals, and +/- 10VDC voltage signals. The module's channels are non-isolated and support a single-ended cabling configuration.
The 1794-OE12 is used with terminal bases such as 1794-TB3G and 1794-TB3GS with key switch position 4. It has an open housing, which means that the module and the entire Flex I/O assembly must be installed inside the housing to provide adequate protection for industrial elements.
The 1794-OE12 is equipped with a built-in analog-to-digital circuit (ADC) converter. It converts digital data into analog signals with a resolution of 16 bits and a 2-complement data format. For both voltage and current signals, the absolute accuracy of each output channel is 0.1% full scale @ 25 °C, with an accuracy drift of 0.004% full scale /°C for both signal configurations.
The current consumption of the 1794-OE12 is 80 mA, and the supply voltage is required to be 10.5-31.2VDC. Its power consumption is 7.68W@24V DC, heat dissipation is 26.2 BTU/ hr@24V DC, isolation voltage is 50V (continuous), basic insulation type. There is no isolation between channels. It has a physical dimension of 94.0 x 94.0 x 53.3 mm or 3.7 x 3.7 x 2.1 inches and has a built-in group diagnostic LED.
The 1794-OE12 has an operating temperature of -20 to 60 °C (-4 to 140 °F), a storage temperature requirement of -40 to 85 °C (-40 to 185 °F), and a relative humidity of 5-95%. Its operating shock and vibration ratings are 30 g and 5 g @ 10... 500 Hz.
1794-OE12 does not require calibration. It has a physical size of 3.7 x 3.7 x 2.1 inches and an open housing. It can be mounted using DIN rails. The output of the 1794-OE12 module is 0 mA until the configuration is complete. After configuration, the output signal range is 4-20 mA and 0-20 mA, both of which can be configured by the user, while the configurable output voltage range is +/-10V. The module's mA output resistance load is 0-750? At 24V DC and maximum voltage output current load 3 mA. The current resolution is 0.641 μA/cnt and the voltage resolution is 320 μV/cnt. The module has a nominal external DC power supply of 24V DC and an external DC power supply voltage range of 10-31.2V DC, including 5% AC ripple. The module's external DC power supply current is 720 mA (10V DC) and 320 mA (24V DC). The 1794-OE12 module also features a FlexBus current of 80 mA and a continuous isolation voltage of 50V, which has been tested at 850V DC for 60 seconds, especially between the user and the system power supply. The absolute accuracy of the voltage and current terminals is 0.1% full scale (25% each), and the accuracy of the voltage and current terminals varies with temperature by 0.004% full scale/Celsius. The module has a maximum power consumption of 4W at both 10V DC and 31.2V DC, 4.3W at 24V DC, and a maximum heat dissipation of 4.7BTU /hr at 24V DC. The module has an operating temperature of -20 to 60 degrees Celsius and a storage temperature of -40 to 85 degrees Celsius. It also has a relative humidity of 5-95% and is non-condensing. The module also has a working shock of 30 g, a non-working shock of 50 g and a working vibration of 5 g at 10-500 Hz.
