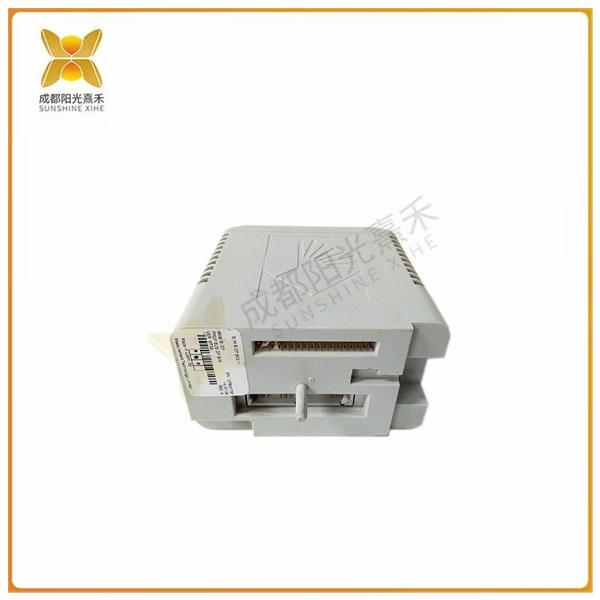

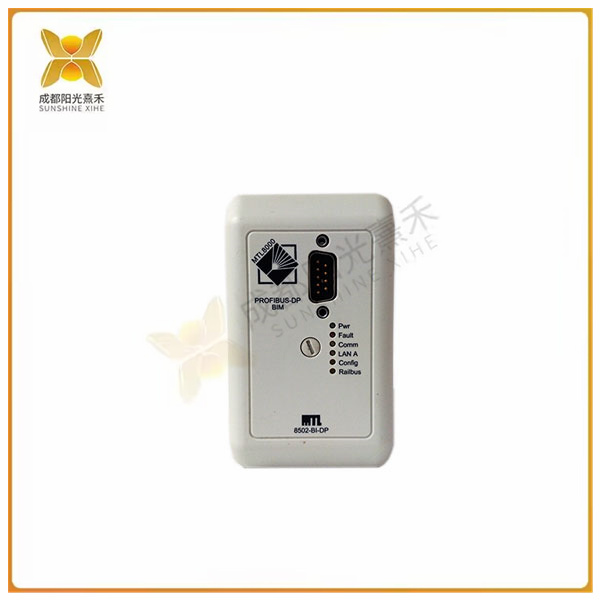

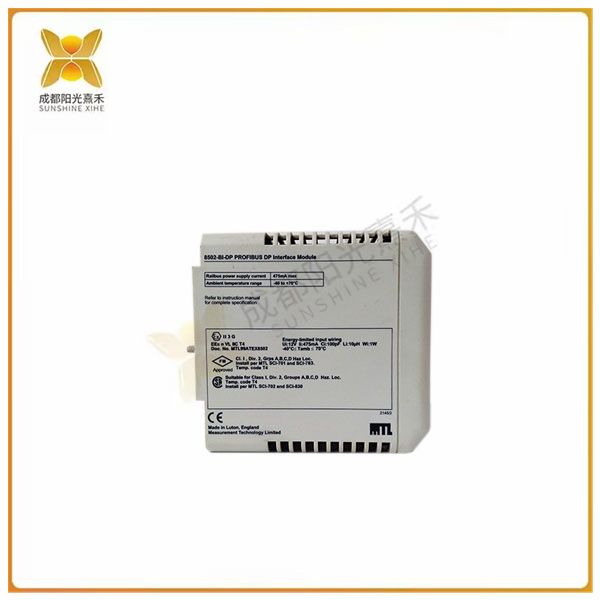

>>>>>型號:8502-BI-DP 總線接口模塊 支持多達 24 個 I/O 模塊

【功能描述】

品牌：MTL Instruments

產品編號：8502-BI-DP

產品類型：總線接口模塊（BIM）

Profibus協議

將節點MTL8000連接到Profibus-DP主機LAN

支持多達24個I/O模塊

通過Profibus-DP的HART過程和狀態變量

模塊和通道狀態的擴展診斷

LAN速度高達6 Mbaud

用于配置的非易失性存儲器

可通過本地端口或Profibus主機進行軟件配置

通過通信適配器進行HART?維護

重量：0.350公斤

8502-BI-DP(Bus Interface Module)BIM提供8000系列I/O模塊與a之間的通信鏈路profibus–dp主機。它從模塊中高速采集數據而局域網的運行速度高達6mbaud，允許主機對快速響應控制過程中的條件。

BIM收集I/O模塊的數據并制作可根據主人的要求提供。它是Profibus主機的一個奴隸。以及循環數據交換，這是讀取輸入所必需的BIM支持Profibus Extended，支持輸出數據的寫入診斷狀態信息。它還支持許多已經實現的特殊功能，以允許高完整的系統操作和現場維護。

◆連接MTL8000節點到Profibus-DP主機局域網

◆最多支持24個I/O模塊HART過程和狀態變量通過Profibus-DP

◆擴展模塊和通道狀態診斷

◆局域網速度高達6mbaud

◆配置用非易失性存儲器

◆軟件可通過本地端口或Profibus主機配置HART?通過通信適配器進行維護

>>>>>型號:8502-BI-DP 總線接口模塊 支持多達 24 個 I/O 模塊

【英文介紹】

Brand: MTL Instruments

Product Number: 8502-BI-DP

Product Type: Bus Interface Module (BIM)

Profibus protocol

Connect node MTL8000 to the Profibus-DP host LAN

Supports up to 24 I/O modules

HART procedures and state variables through Profibus-DP

Extended diagnostics of module and channel state

LAN speeds up to 6 Mbaud

Non-volatile memory for configuration

The software can be configured through the local port or the Profibus host

HART? maintenance via communication adapter

Weight: 0.350 kg

8502-BI- Bus Interface Module (DP) The BIM provides a communication link between the 8000 series I/O modules and the A profibus -DP host. It collects data from modules at high speeds while the LAN operates at speeds up to 6mbaud, allowing the host to respond quickly to conditions during control.

BIM collects data from I/O modules and makes them available at the owner's request. It's a slave to the Profibus mainframe. As well as cyclic data exchange, which is necessary to read the input BIM supports Profibus Extended, which supports writing diagnostic status information to the output data. It also supports a number of special features that have been implemented to allow for high integrity system operation and field maintenance.

◆ Connect the MTL8000 node to the Profibus-DP host LAN

◆ Supports up to 24 I/O module HART processes and state variables via Profibus-DP

◆ Expansion module and channel status diagnosis

◆ LAN speed up to 6mbaud

◆ Configure with non-volatile memory

The software can be maintained via a local port or Profibus host configured with HART? via a communication adapter
